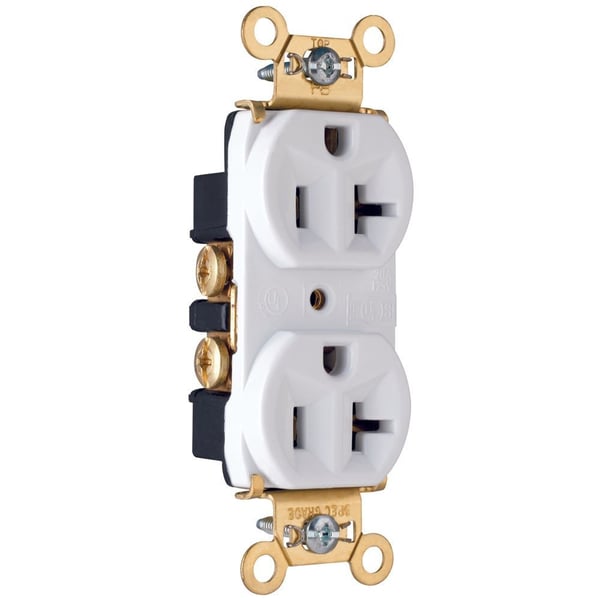

Pass & Seymour® PS5362W Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Pass & Seymour® PS5362W Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU: P-SPS5362-W
Manufacturer Part Number: PS5362W
UPC: 785007859942
Documents
Features
- Heavy duty brass strap for added strength and ground conductivity
- Auto-ground clip assures positive ground
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- Strap tabs wrap-around face to prevent strap from separating from face and back body
- High strength nylon face
- Internal screw pressure plate back and side wired to accept 14 to 10 AWG stranded or solid copper or copper clad conductors
- 8 back wire holes
- 0.032 in THK, brass triple wipe power contracts for lasting retention
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Terminal identification in accordance with UL 498 (brass, white, green)
- Ratings are a permanently marked on the device
Specification
| Grade | Commercial/Specification |
|---|---|
| Material | Nylon/Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Back/Side Wire |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA C22.2 No. 42 File No. LR16063, cULus Listed, ECCN: EAR99, Federal Specification W-C-596, UL 498 File No. E140596, UL 92 V-2 Flammability Rated |
| Amperage Rating | 20 A |
| Color | White |
| Enclosure | NEMA WD-1/WD-6 |
| Application | Healthcare, Education, Commercial and Institutional Applications |
| Type | Duplex Heavy Duty |
| Dimensions | 1.322 in L x 0.78 in W x 3.281 in H |
