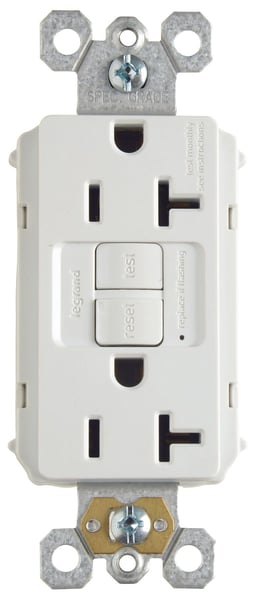

Pass & Seymour® PlugTail® PT2097W Duplex Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Pass & Seymour® PlugTail® PT2097W Duplex Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU: P-SPT2097-W
Manufacturer Part Number: PT2097W
UPC: 785007048643
Documents
Short Description
Features
- Faster, more reliable installation
- No exposed terminals create a finger safe application before, during and after installation
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail® connector
- GFCI works with existing 3-wire PlugTail® connectors creating a non-Feed through application for facility owners
- Conducts an automatic test every three seconds, ensuring it's always ready to protect
- If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced
- It also has our proven SafeLock™ protection feature
- If critical components are damaged and protection is lost, power to the receptacle is disconnected
- Thinner than competitor's GFCI receptacle, leaves more room for wires in the box
- Meets 2015 UL requirements
- Auto-ground clip assures a positive ground to metal box
- Trip indicator light (red LED)
- 10 kA short circuit rating
- Mounting screws are shipped captive in the device and wallplate for easier installation
- High impact resistant thermoplastic construction
- Zinc plated steel mounting strap, button colors match the device face
- Dual direction test and reset buttons, class A rated GFCI
- Supplied with matching TP wall plate, tri-drive screws
- 102 to 132 VAC supply voltage range, 5 +/- 1 mA trip threshold
- Trip time 0.025 sec, nominal per UL standard
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Grade | Specification |
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -35 to 66 deg C |
| Terminal Type | Blade |
| Voltage Rating | 125 VAC |
| Standard & Approvals | cULus Listed, FSUL Listed, cULus E42190, UL 498, 943, Federal Specification WC596 |
| Amperage Rating | 20 A |
| Dimensions | 1.03 in L x 1.73 in W x 4.2 in H |
| Color | White |
| Application | Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications |
| Type | Duplex Self-Test |
