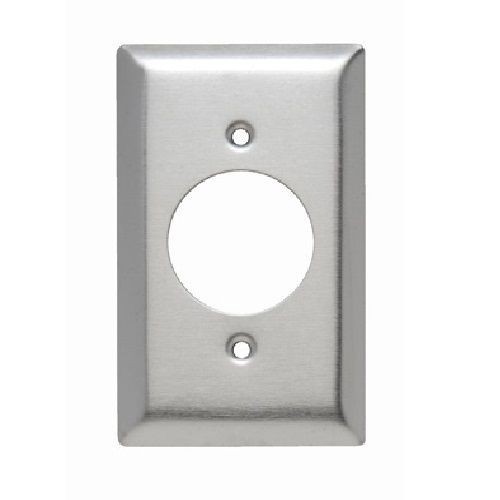

Pass & Seymour® SS721 Standard Wallplate, 1 Gangs, 7 in H x 2-3/4 in W, 302 Stainless Steel

Selected Pass & Seymour® SS721 Standard Wallplate, 1 Gangs, 7 in H x 2-3/4 in W, 302 Stainless Steel
Pass & Seymour® SS721 Standard Wallplate, 1 Gangs, 7 in H x 2-3/4 in W, 302 Stainless Steel

Documents

Short Description

Legrand/Pass & Seymour’s broad line of standard size Plastic and Metal Wall Plates features the most complete range of types, sizes, colors, and finishes available. Choose from more than 1,900 standard plates in non-combustible thermoset plastic material, self-extinguishing nylon material, screwless polycarbonate material, or attractively finished metal, for residential, commercial, institutional, and industrial applications. All plastic wallplates color match to Legrand/Pass & Seymour devices.

Features

  • This alloy contains 18% chromium and 8% nickel for superior resistance to corrosion
  • Packaged in protective film, with finish-matching screws
  • Paintable to match plastic plates
  • Seamless, sleek, super smooth construction provides no dirt-catching channel around plate’s perimeter
  • 0.032 in THK Nominal
  • Can be silk-screened or engraved and custom punched with over 300 opening styles
  • 1.625 in hole for 1.5938 in Dia device
  • 2 Mounting holes
  • Non-Magnetic
  • Box/Wall mounting

Specification

Insulation
Bare
Material
302 Stainless Steel
Mounting
Surface
Number of Gangs
1
Number of Ports
1
Orientation
Vertical
Thickness
0.33 in
Type
Standard
Standard & Approvals
UL 514, RoHS Compliant
Finish
Brushed Stainless Steel
Cutout
1.625 in Dia x 2-3/8 in H Power Outlet Receptacle
Application
Food Processing Plants, Dairies, Chemical Plants and Other Industrial, Institutional and Commercial Applications
Size
7 in H x 2-3/4 in W
