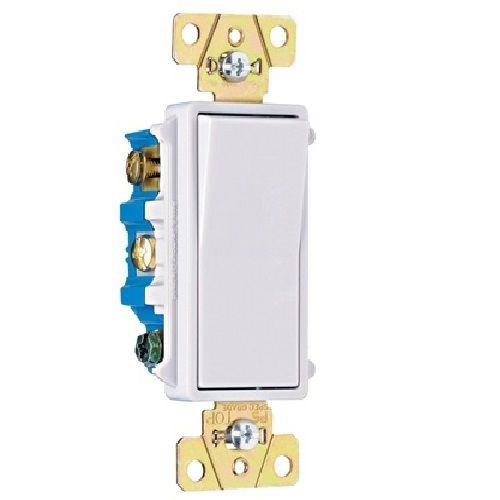

Pass & Seymour® TradeMaster® TM874W Radiant® 4-Way Decorator Switch, 120/277 VAC, 15 A
Pass & Seymour® TradeMaster® TM874W Radiant® 4-Way Decorator Switch, 120/277 VAC, 15 A
SKU: P-STM874-W
Manufacturer Part Number: TM874-W
UPC: 785007844993
Documents
Short Description
Features
- Part of the all-new radiant® collection
- Smooth paddle action
- High-impact resistant thermoplastic construction
- External screw-pressure-plate back and side wired
- Accepts #12 and #14 AWG
- Push wire #14 AWG
- Narrow back body leaves more room for wires in the box
- Extra-long, through-body strap eliminates floating installations and imperfect applications
- Easy-access green hex head ground screw
- Tri-drive ground, terminal and mounting screws
- ON/OFF switches conform to NEC® 430-104 requirements for kitchen and disposal units
- Designer-style satin-finish rocker
Specification
| Material | Thermoplastic |
|---|---|
| Mounting | Wall |
| Series | radiant® |
| Terminal Type | Screw |
| Type | 4-Way |
| Voltage Rating | 120/277 VAC |
| Application | Commercial/Residential |
| Standard & Approvals | CSA C22.2 111 Certified, NAFTA Complaint, NEMA WD-1/WD-6, RoHS Complaint, UL 498/20 Listed |
| Amperage Rating | 15 A |
| Dimensions | 4.19 in H x 1.43 in W x 1.27 in D |
| Actuator | Rocker |
| Color | White |
