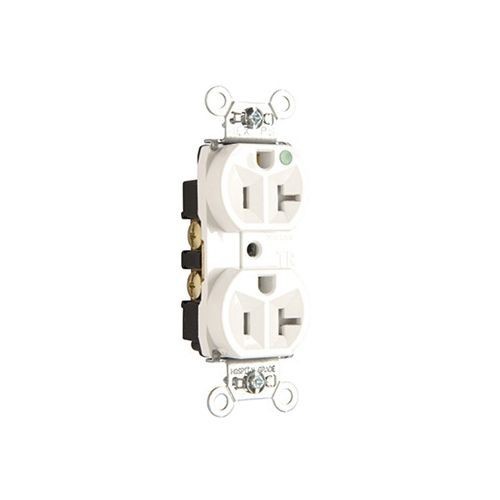

Pass & Seymour® TR8300HI Duplex Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Selected TR8300HIPass & Seymour® TR8300HI Duplex Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
TR8300HIPass & Seymour® TR8300HI Duplex Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Documents

Short Description

Compact bodies leave more room for wires in the box, but that isn't the only way these durable Pass & Seymour® Hospital Grade Receptacles speed installation. They alsofeature an auto-ground and screw-pressure-plate back wiring (with the option of side wiring). Long service life is ensured by one piece, triple-wipe brass power contacts anda heavy-gauge strap that is locked into the high strength thermoplastic back body. A sturdy mechanical shutter system helps prevent children from inserting objects into the receptacle.

Features

  • Impact resistant nylon face
  • 1-piece heat treated triple wipe brass power contacts
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
  • Corrosion-resistant, zinc-plated steel strap is locked in
  • Internal screw-pressure-plate back wire and side wire line terminals accept 14 to 10 AWG copper or copper-clad conductors
  • High strength thermoplastic back body
  • Auto ground clip assures positive ground
  • Compact design for easy installation
  • Tri-drive terminal and mounting screws
  • Meets National Electrical Code tamper-resistant requirements
  • Protects children patented shutter system helps prevent improper insertion of foreign objects
  • 0.032 in THK brass triple-wipe power contacts for lasting retention
  • Terminal compartments isolated from each other for positive conductor containment
  • Withstands 2000 V minimum dielectric voltage
  • 250 VAC maximum working voltage
  • Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
  • Terminal identification in accordance with UL 498 (brass, white, green)
  • UL94 V2 flammability

Specification

Grade
Hospital
Material
Thermoplastic
NEMA Rating
NEMA 5-20R
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Terminal Type
Back/Side Wired
Type
Duplex Heavy Duty Tamper Resistant
Voltage Rating
125 VAC
Application
Health Care, Education and Institutional
Standard & Approvals
UL 498, File No. E140596, Fed Specification WC596, CSA C22.2 No. 42, CSA File No. LR16063
Amperage Rating
20 A
Color
Ivory
Dimensions
3.281 in H x 1.322 in W x 0.78 in D
