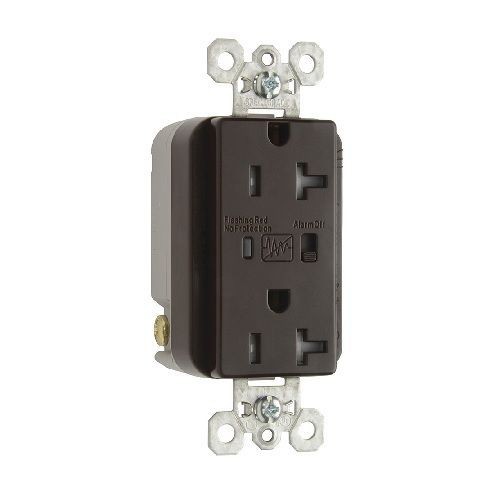

Pass & Seymour® TR5362SP Duplex Extra Heavy Duty Isolated Ground Specification Grade Tamper-Resistant Surge Protective Receptacle, 125 VAC, 20 A, 60 Hz, 1 Phase
Pass & Seymour® TR5362SP Duplex Extra Heavy Duty Isolated Ground Specification Grade Tamper-Resistant Surge Protective Receptacle, 125 VAC, 20 A, 60 Hz, 1 Phase
SKU: P-STR5362-SP
Manufacturer Part Number: TR5362-SP
UPC: 785007019636
Documents
Features
- Offers increased transient protection, reliability and protection notification
- Dual mechanical shutter system to help prevent insertions of foreign objects
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- 0.032 in THK brass triple wipe power contacts for lasting retention
- Corrosion resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly
- Auto ground clip assures positive ground
- Easily accessed break off line contact connecting tab for fast and easy split circuit wiring
- Backed out tri-drive steel terminal screws and side wire capability
Specification
| Frequency Rating | 60 |
|---|---|
| Material | Thermoplastic |
| Mounting | Box/Strap |
| Phase | 1 |
| Voltage Rating | 125 VAC |
| Application | Commercial and Residential |
| Amperage Rating | 20 A |
| Color | Brown |
| Environmental Conditions | UL94 V2 Flammability |
| Connection | Back/Side Wire |
| Standard & Approvals | RoHS Compliant, ECCN EAR99, cULus Listed, Federal Specification |
| Type of Indicators | Audible Alarm |
| Type | Extra Heavy Duty Isolated Ground Specification Grade Tamper Resistant |
| Size | 1.75 in W x 0.94 in D x 3.82 in H |
| Operating Temperature | -4 to 131 |
