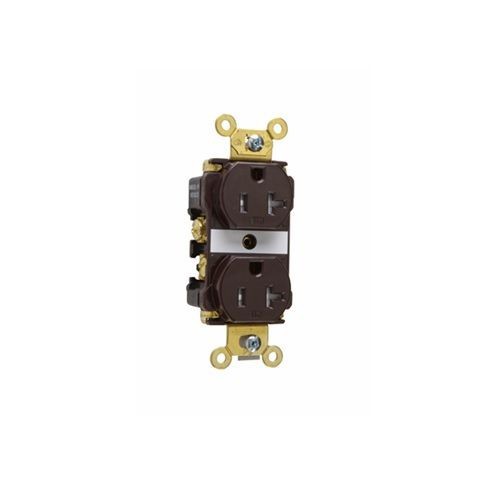

Pass & Seymour® TR63 3-Phase Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Pass & Seymour® TR63 3-Phase Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
SKU: P-STR63
Manufacturer Part Number: TR63
UPC: 785007268003
Documents
Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Extra heavy duty brass, one-piece mounting strap with integral ground
- One-piece, brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap-around and lock down on face to prevent strap from separating from face and back body
- Impact-resistant nylon face and back body
- Easily accessible break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with NO 10 brass terminal screws for visual assurance of a good connection
- Auto-ground clip assures positive ground
- Withstands 2000 VAC dielectric voltage
- 250 VAC maximum working voltage
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Terminal identification in accordance with UL498 (brass, white, green)
- UL92 V2 flammability rating
- Ratings are a permanently marked on the device
Specification
| Grade | Hospital |
|---|---|
| Material | Nylon/Thermoplastic |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Color | Brown |
| Enclosure | NEMA WD-1 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Back/Side Wired |
| Type | Duplex Tamper Resistant |
| Voltage Rating | 125 VAC |
| Application | Healthcare, Education and Institutional |
| Standard & Approvals | UL E140596, UL 498, Federal Specification WC596, File No LR16063, CSA-C22.2 No 42, RoHS Compliant |
| Dimensions | 4.3 in H x 1.8 in W x 1.3 in D |
| Catalog ID | P-STR63 |
