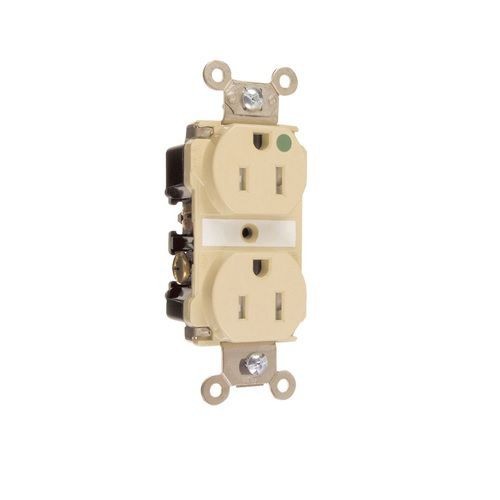

Pass & Seymour® TR63HI Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Pass & Seymour® TR63HI Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: P-STR63-HI
Manufacturer Part Number: TR63-HI
UPC: 785007145250
Features
- Wall mounting
- Tamper resistant
- Hospital grade
- 2000 V dielectric strength
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Extra heavy-duty brass, one-piece mounting strap with integral ground
- One piece, nickel plated brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Impact resistant nylon face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- Auto ground clip assures positive ground
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- -40 to +60 deg C without impact continuous operating temperature
- UL 94 V-2 flammability rating
- 14 - 10 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 60 deg C |
| Terminal Type | Back and Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA C22.2 NO 42, UL498, RoHS Complaint |
| Amperage Rating | 20 A |
| Dimensions | 1.625 in L x 0.9 in W x 3.281 in H |
| Color | Ivory |
