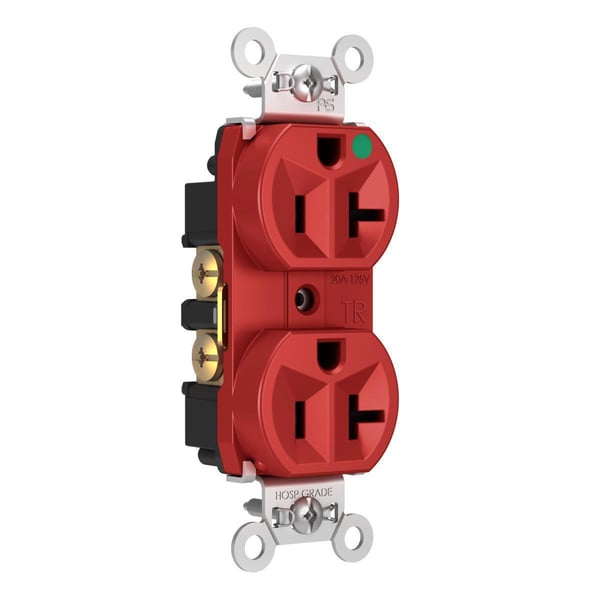

Pass & Seymour® TR8300HRED Duplex Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red

Selected Pass Seymour TR8300HRED 1
Pass Seymour TR8300HRED 1

Documents

Short Description

Compact bodies leave more room for wires in the box, but that isn't the only way these durable Pass & Seymour® hospital grade receptacles speed installation. They also feature an auto-ground and screw-pressure-plate back wiring (with the option of side wiring). Long service life is ensured by one piece, triple-wipe brass power contacts and a heavy gauge strap that is locked into the high strength thermoplastic back body. A sturdy mechanical shutter system helps prevent children from inserting objects into the receptacle.

Features

  • Impact-resistant nylon face
  • Easily accessible break-off line contact connecting tab for split circuit wiring
  • Corrosion-resistant, zinc-plated steel strap is locked in
  • Internal screw-pressure-plate back wire and side wire line terminals accept 14 : 10 AWG copper or copper-clad conductors
  • Compact design for easy installation
  • Tri-drive terminal and mounting screws
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here

Specification

Terminal Type
Back/Side Wire
Color
Red
Temperature Rating
-40 to 60 deg C
NEMA Rating
NEMA 5-20R
Amperage Rating
20 A
Material
Thermoplastic
Voltage Rating
125 VAC
Dimensions
1.322 in W x 0.78 in D x 3.281 in H
Number Of Poles
2
Type
Duplex Heavy Duty Tamper-Resistant
Number of Wires
3
Grade
Hospital
