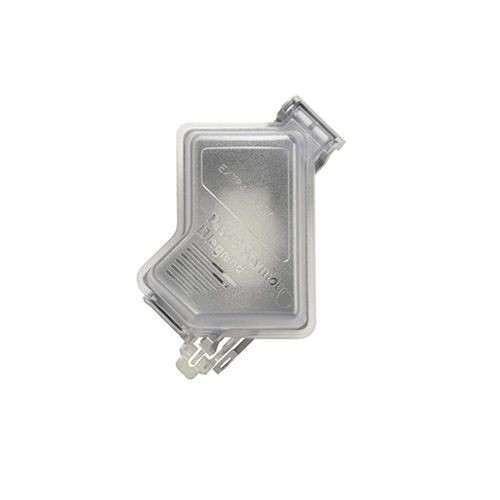

Pass & Seymour® WIUCED10SC Extra Heavy Duty Shallow Weatherproof While-In-Use Cover, 5.34 in W x 3 in D, Polycarbonate

Selected Pass & Seymour® WIUCED10SC Extra Heavy Duty Shallow Weatherproof While-In-Use Cover, 5.34 in W x 3 in D, Polycarbonate
Pass & Seymour® WIUCED10SC Extra Heavy Duty Shallow Weatherproof While-In-Use Cover, 5.34 in W x 3 in D, Polycarbonate

Short Description

Corner hinges allow versatile polycarbonate covers to be installed either vertically or horizontally. They provide generous interior room to accommodate bends in even the heaviest cords. They are lockable to prevent tampering and deliver excellent weather resistance thanks to neoprene blend gasketing, a cord flap seal and our exclusive WaterShed™ channel.

Features

  • Listed and identified as ''Extra Duty''
  • Covers are self-closing as required by UL514C42.3
  • Covers mount vertically or horizontally
  • Body, cover and plates made of polycarbonate
  • Gasket made of closed cell foam, neoprene blend regular density, UL rated HBF
  • Mounting screws made of 302 stainless steel
  • 1-Receptacle plate available in 1.405 in and 1.595 in openings
  • Deep model available for 20 A locking plugs
  • Shallow covers accommodate up to 14/3 AWG extension cords
  • New trigger latch opens easily with one finger

Specification

Material
Plastic
Number of Gangs
1
Number of Outlets
1
Thickness
1/8 in
Type
Extra Heavy Duty Shallow Weatherproof
Width
5.34 in
Application
Industrial, Education, Retail, Hospitality/Lodging, Health Care, Institutional, Office and Education
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, ECCN EAR99 NEC 2014 Section 406.9 (B)(1), cULus Listed
Color
Gray/Clear
Depth
3 in
Finish
Textured
