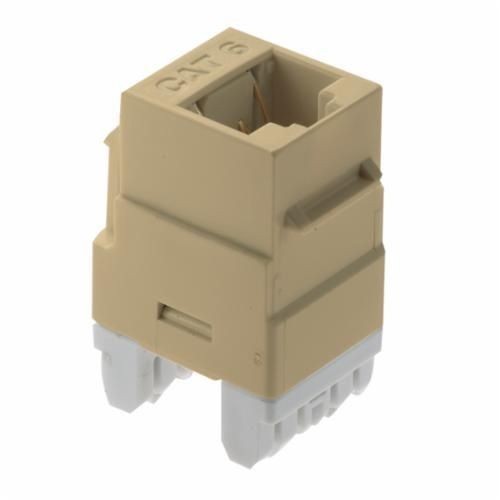

Pass & Seymour® WP3460-LA Cat 6 Keystone Connector, Cat 6 Module, Keystone Mount, 1 Port, Plastic, Light Almond
Pass & Seymour® WP3460-LA Cat 6 Keystone Connector, Cat 6 Module, Keystone Mount, 1 Port, Plastic, Light Almond
SKU: P-SWP3460-LA
Manufacturer Part Number: WP3460-LA
UPC: 804428024378
Documents
Features
- High quality insert for use in multimedia wallplates
- Rear retention caps ensure secure wire termination
- Vertical design for easy punch down termination
- Insertion and extraction life is 750 cycles min
- Jack housing is high impact, flame-resistant plastic
- Spring wire is phosphor bronze alloy plated with 50 micro-inches of gold over 100 micro-inches of nickel
- -40 to 158 deg F storage temperature, 93% maximum non-condensing humidity
- 22 to 24 AWG IDC wire gauge termination
- Creates an Ethernet port
Specification
| Material | Plastic |
|---|---|
| Mounting Type | Keystone |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | P-SWP3460-LA |
| Color | Light Almond |
| Dimensions | 0.63 x 0.87 x 1.26 in |
| Series | WP Series |
| Specifications | M20, 1 Port 4 Pair Count, RJ45 Connector |
| Suitable For Use With | Keystone Wallplates |
| Type | Cat 6 |
| Application | Commercial and Residential Application |
| Standard & Approvals | cULus Listed, UL 1863, CAN/CSA-C22.2 No. 182.4-1990, ANSI Specified, RoHS Compliant |
| Includes | T568A, T568B Wiring Label |
