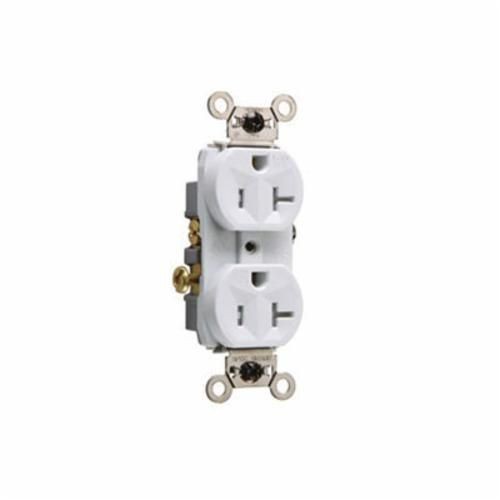

Pass & Seymour® WR20TRW Duplex Tamper-Resistant UV-Resistant Weather-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Pass & Seymour® WR20TRW Duplex Tamper-Resistant UV-Resistant Weather-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU: P-SWR20-TRW
Manufacturer Part Number: WR20-TRW
UPC: 785007242577
Features
- Wall mounting
- Tamper and Weather Resistant
- Auto ground clip assures positive ground
- Zinc plated steel mounting screws for greater ease of installation and removal in wet or damp locations
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility
- Heavy duty, brass strap for added strength and ground conductivity
- UV resistant nylon face for longer life under adverse environmental conditions
- Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- 0.032 in thick brass triple-wipe power contacts for lasting retention
- UV resistant nylon
- UL 94 V-2 flammability rating
- 14 - 10 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 50 deg C |
| Terminal Type | Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA C22.2 NO 42 Certified, UL 498 Listed, RoHS Complaint |
| Amperage Rating | 20 A |
| Dimensions | 1.322 in L x 1.13 in W x 3.281 in H |
| Color | White |
