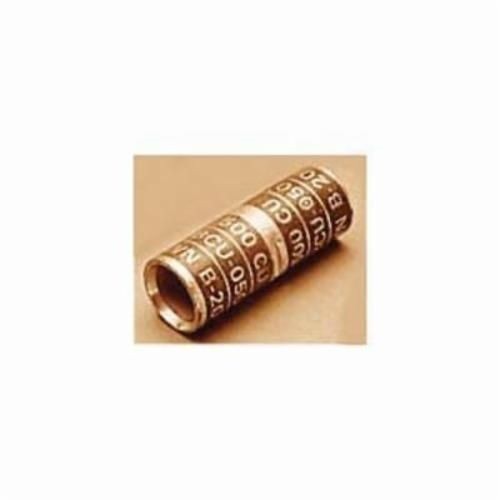

Penn-Union™ Penn-Crimps® BCU-2 BCU Compression Splice Connector, 2 AWG Concentric/Compressed/Compact Stranded Copper Conductor, Die Code: B-10, 1-7/8 in L, Copper Plated
Penn-Union™ Penn-Crimps® BCU-2 BCU Compression Splice Connector, 2 AWG Concentric/Compressed/Compact Stranded Copper Conductor, Die Code: B-10, 1-7/8 in L, Copper Plated
SKU: P-UBCU-2
Manufacturer Part Number: BCU-2
UPC: 785037218221
Features
- Seamless, one piece pure copper construction
- Tin plating assures maximum conductivity
- Generous entrance chamfer provides easy cable insertion
- Type BBCU has longer length barrel which permits extra crimps for additional assurance on heavy duty loads
- Positive cable stops insure proper insertion of conductors to full depth
- Catalog number and conductor size marked on every piece insures positive identification
- Can be installed with existing crimping tools
- Color coding conforms to industry requirements to insure proper connector/die selection and to provide for faster installation
- BBCU splices are suitable for use at voltages upto 35 kV provided conductor is taped in accordance with accepted practices, 5 kV is maximum voltage level in all bare splice applications
Specification
| Material | Copper |
|---|---|
| Temperature Rating | 90 deg C |
| Finish | Tin Plated |
| Color | Brown |
| Conductor Size | 2 AWG |
| Specifications | 0.292 in Dia Wire |
| Series | BCU |
| Length | 1-7/8 in |
| Voltage Rating | 35 kVAC |
| Standard & Approvals | CSA C22.2 NO 65/C22.2 NO 41, UL 486A/467 |
| Conductor Type | Concentric/Compressed and Compact Copper Stranding |
| Die Code | B-10 |
