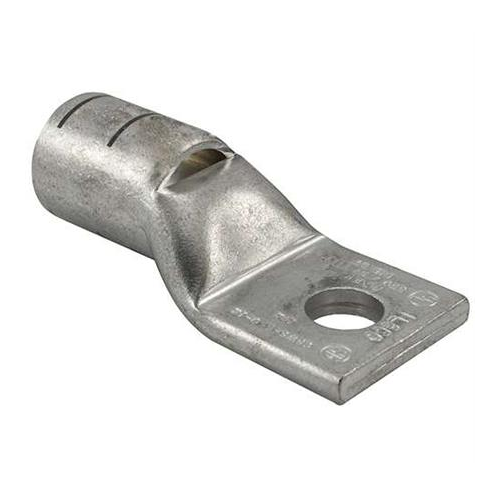

Penn-Union™ Penn-Crimps® BLU 2S 1-Hole Compression Terminal Lug, 2 AWG, Die Code: B-10, 1/4 in Stud, Copper
Penn-Union™ Penn-Crimps® BLU 2S 1-Hole Compression Terminal Lug, 2 AWG, Die Code: B-10, 1/4 in Stud, Copper
SKU: P-UBLU-2S
Manufacturer Part Number: BLU 2S
UPC: 785037230650
Documents
Features
- Stud connection
- Seamless, one piece pure copper construction
- Tin plating assures maximum conductivity
- Generous entrance chamfer provides easy cable insertion
- Inspection window insures full insertion
- Catalog number and conductor size marked on every piece insures positive identification
- Can be installed with existing crimping tools
- Color coding conforms to industry requirements to insure proper connector die selection and to provide for faster installation
- Concentric, compressed and compact copper stranding conductor
- 45 deg and 90 deg variations are UL listed and CSA certified
- 2 AWG Stranded cable size
- 0.292 in Dia Wire
Specification
| Material | Copper |
|---|---|
| Overall Length | 1-51/64 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Barrel Size | 7/8 in L |
| Catalog ID | P-UBLU-2S |
| Color Code | Brown |
| Conductor Size | 2 AWG |
| Die Code | B-10 |
| Stud Size | 1/4 in |
| Temperature Rating | 45 to 90 deg C |
| Tongue Size | 11/16 in L x 19/32 in W x 7/64 in THK |
| Type | 1-Hole |
| Voltage Rating | 35 kV |
| Standard & Approvals | UL Listed For Cu 90 deg C, UL486A Power, UL467 Grounding, CSA Certified, CSA C22.2 No.65 Power, CSA C22.2 No.41 Grounding, Grounding and Bonding, Direct Burial |
