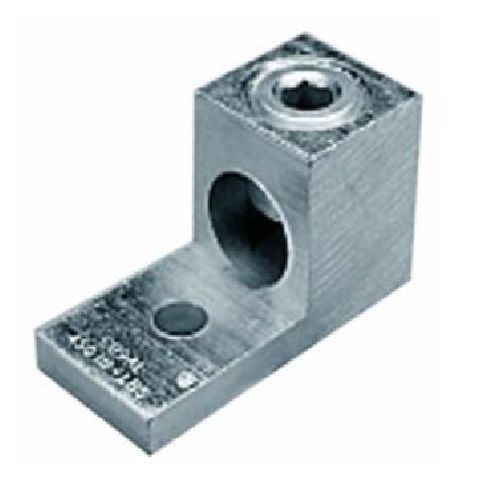

Penn-Union™ LA 6 LA Series Solderless Lug, 14 to 6 AWG Aluminum Conductor, 17/64 in Stud, 1 Bolt Holes, Aluminum
Penn-Union™ LA 6 LA Series Solderless Lug, 14 to 6 AWG Aluminum Conductor, 17/64 in Stud, 1 Bolt Holes, Aluminum
SKU: P-ULA-6
Manufacturer Part Number: LA 6
UPC: 785037446082
Documents
Features
- Body fabricated from high strength aluminum alloy extrusion
- Lug is 100% reusable using hex wrench, No special tools required
- Maximum conductivity, compact design, light weight with ultimate strength
- Electro-tin plated to assure minimum contact resistance and protection against corrosion when used with copper wire
- One hole, front entrance
- For added protection apply Penn-Union Cual-Aid® to cable before installation
- 1 stud of 17/64 in
Specification
| Material | Aluminum |
|---|---|
| Number of Bolt Holes | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | P-ULA-6 |
| Conductor Size | 14 to 6 AWG |
| Conductor Type | Aluminum |
| Dimensions | 1-1/16 in L x 1/2 in W x 1/2 in H |
| Finish | Electro-Tin Plated |
| Series | LA |
| Stud Size | 17/64 in |
| Tongue Style | Straight |
| Voltage Rating | 600 VAC |
| Application | For Aluminum or Copper Conductor |
| Standard & Approvals | AL9CU Rated, CSA Certified, UL 486B Listed |
| Tongue Size | 11/16 in L x 1/2 in W x 3/32 in T |
| Specifications | 45 in/lb Torque |
