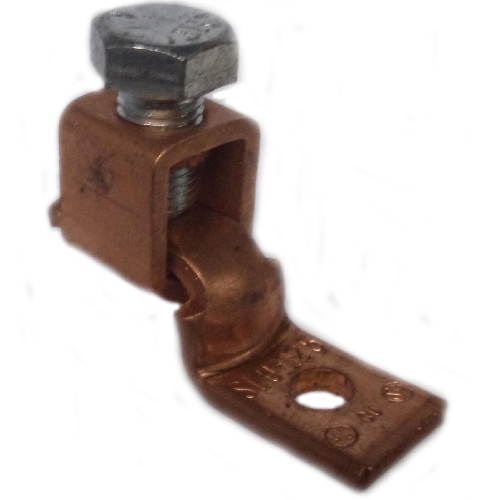

Penn-Union™ SLU125 Type SLU Single Collar Mechanical Terminal Lug, 8 to 1/0 AWG Stranded Copper Conductor, 17/64 in Stud, 1 Bolt Holes, Copper
Penn-Union™ SLU125 Type SLU Single Collar Mechanical Terminal Lug, 8 to 1/0 AWG Stranded Copper Conductor, 17/64 in Stud, 1 Bolt Holes, Copper
SKU: P-USLU-125
Manufacturer Part Number: SLU 125
UPC: 785037630641
Documents
Features
- 100% pure electrolytic copper for utmost efficiency
- Unique design of the concave pressure bar and V-bottom collar assures positive contact and firm, permanent grip
- One hole, single collar
- 1 stud of 17/64 in
Specification
| Material | Copper |
|---|---|
| Number of Bolt Holes | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Conductor Type | Stranded Copper |
| Series | SLU |
| Stud Size | 17/64 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 7/8 in L x 5/8 in W |
| Standard & Approvals | CSA Certified, UL Listed |
| Application | For copper stranded wire |
| Dimensions | 1-11/32 in L x 1-7/8 in W |
| Conductor Size | 8 AWG to 1/0 Stranded AWG |
| Catalog ID | P-USLU-125 |
