Advance 71A6552001 Magnetic HID Ballast, HID Metal Halide Lamp, 1000 W Lamp, 120/208/240/277/480 VAC, Probe, 1 Ballast Factor

Advance 71A6552001 Magnetic HID Ballast, HID Metal Halide Lamp, 1000 W Lamp, 120/208/240/277/480 VAC, Probe, 1 Ballast Factor
SKU: ADV71A6552001
Manufacturer Part Number: 71A6552001
UPC: 781087111833
Documents
Short Description
Features
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance's five other ballast configurations
- 24 MFD Capacitor
- 4.96/3.84/2.77/2.35/1.37 A Input Current (Open Circuit), 5.77/2.91/2.78/2.39/1.38 A Input Current (Starting), 4.36-6.64/2.14-3.2/2.1-3.14/1.82-2.74/1.04-1.56 A Input Current (Short Circuit), 9.2/5.8/4.8/4.1/2.4 A Input Current (Nom)
- 4-1/4 x 6 (2 Coil) Core Size
- 1.75 in Dia x 3.9 in H Oval Capacitor

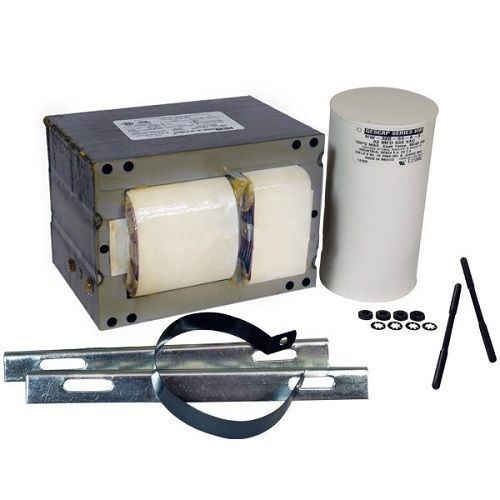

- Ballast replacement kit with oil filled capacitor
- UL Insulation Class H of 180 deg C
Specification
Frequency Rating | 60 Hz |
---|---|
Lamp Base Type | 71A6552 |
Lamp Type | Metal Halide |
Lamp Wattage | 1000 W |
Minimum Starting Temperature | -20 deg F |
Number of Lamps | 1 |
Start Type | Probe |
Thermal Protection | Class P |
Type | Magnetic |
Voltage Rating | 120/208/240/277/480 VAC |
Wattage | 1080 W |
Standard & Approvals | ULR Listed, CSA Certificate, UL Recognized, UL Insulation Class H, RoHS Compliant, ANSI M47 |
Amperage Rating | 9.2/5.8/4.8/4.1/2.4 A |
Dimensions | 6 in L x 5.6 in W x 4.25 in H |
Ballast Factor | 1 |
Dimmable | No |
Power Factor | 0.9 |
