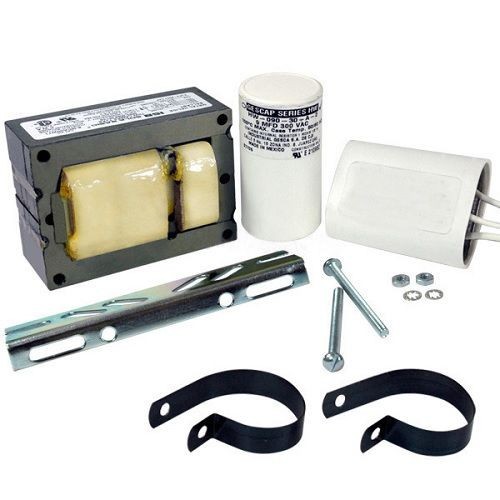

Advance 71A8172001D Core/Coil HID Magnetic High Pressure Sodium Ballast Kit, High Pressure Sodium Lamp, 150 W, 120/208/240/277 VAC, Pulse, 1 Ballast Factor

Selected Advance 71A8172001D Core/Coil HID Magnetic High Pressure Sodium Ballast Kit, High Pressure Sodium Lamp, 150 W, 120/208/240/277 VAC, Pulse, 1 Ballast Factor
Advance 71A8172001D Core/Coil HID Magnetic High Pressure Sodium Ballast Kit, High Pressure Sodium Lamp, 150 W, 120/208/240/277 VAC, Pulse, 1 Ballast Factor

Short Description

Philips Advance HID ballasts are available to operate the wide variety of metal halide, high pressure sodium and low pressure sodium lamps available in today’s marketplace. Like fluorescent, HID lamps are gas discharge lamps. Light is produced by an arc discharge between two electrodes located at opposite ends of an arc tube within the lamp’s outer glass envelope. The ballast is the lamp’s power supply; its purpose is to provide proper starting and operating voltage and current to initiate and sustain this arc. Philips furnishes 120/208/240/277 Philips Advance Quadri-Volt core and coil ballasts to allow the stocking distributor to conveniently meet the replacement and retrofit needs of customers. In addition, we now offer 120/208/240/277/480V 5-TAP core and coil ballasts for the most popular applications. 5-TAP ballasts add the 480V input lead to the Quadri-Volt designs. A Quadri-Volt or 5-TAP core and coil, along with the appropriate capacitor, ignitor (where required), mounting bracket and hardware and installation instructions are packed in a space-saving shipping carton. These "kits" eliminate the need for distributors or end-users to stock loose components of single voltage ballasts for 120, 208, 240, 277 and even some 480V applications, though single voltage kits for 480V applications will also be available.

Features

  • The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
  • The core and coil also forms the nucleus of Philips Advance's five other ballast configurations
  • 14 MFD Capacitor
  • 2.8/1.6/1.4/1.25 A Input Current (Open Circuit), 2/1.15/1/0.85 A Input Current (Starting), 1.15-1.75/0.65-1/0.55-0.85/0.5-0.75 A Input Current (Short Circuit), 1.65/0.95/0.83/0.72 A Input Current (Nom)
  • 3 x 4 (2 LW) Core Size
  • 1.65 in Dia x 2.75 in H Oval Capacitor
  • Ballast replacement kit with dry film capacitor
  • UL Insulation Class H of 180 deg C

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
ADV71A8172001D
Standard & Approvals
ULR Listed, CSA Certificate, UL Recognized, UL Insulation Class H, RoHS Compliant, ANSI S55
Power Factor
0.9
Start Type
Pulse
Voltage Rating
120/208/240/277 VAC
Amperage Rating
1.65/0.95/0.83/0.72 A
Ballast Factor
1
Frequency Rating
60 Hz
Lamp Base Type
71A8172
Lamp Type
High Pressure Sodium
Lamp Wattage
150 W
Minimum Starting Temperature
-40 deg F
Number of Lamps
1
Thermal Protection
Class P
Type
Magnetic
Wattage
190 W
Dimmable
No
Dimensions
4 in L x 4.2 in W x 2.9 in H
