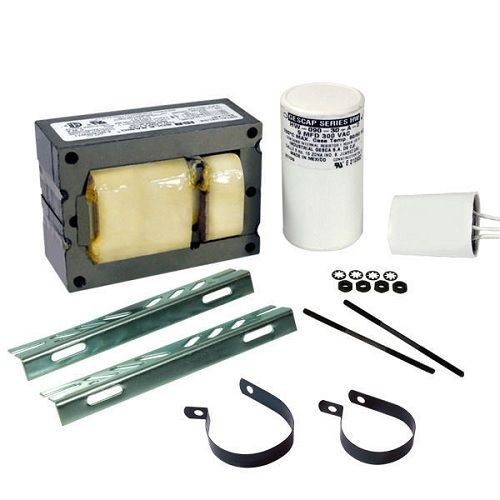

Advance 71A8753001 HID Magnetic High Pressure Sodium Ballast, High Pressure Sodium Lamp, 1000 W, 120/208/240/277/480 VAC, Pulse, 1 Ballast Factor
Advance 71A8753001 HID Magnetic High Pressure Sodium Ballast, High Pressure Sodium Lamp, 1000 W, 120/208/240/277/480 VAC, Pulse, 1 Ballast Factor
SKU: ADV71A8753001
Manufacturer Part Number: 71A8753001
UPC: 781087111826
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Number of Lamps | 1 |
| Type | Magnetic |
| Application | Used in lighting luminaire component and outdoor use |
| Voltage Rating | 120/208/240/277/480 VAC |
| Thermal Protection | Class P |
| Start Type | Pulse |
| Power Factor | 0.9 |
| Minimum Starting Temperature | -40 deg F |
| Lamp Wattage | 1000 W |
| Lamp Type | High Pressure Sodium |
| Lamp Base Type | 71A8753 |
| Standard & Approvals | ULR Listed, CSA Certificate, UL Recognized, UL Insulation Class H, RoHS Compliant, ANSI S52 |
| Wattage | 1100 W |
| Dimmable | No |
| Ballast Factor | 1 |
| Dimensions | 6 in L x 6 in W x 4-1/4 in H |
| Amperage Rating | 9.28/5.32/4.68/4.03/2.31 A |
