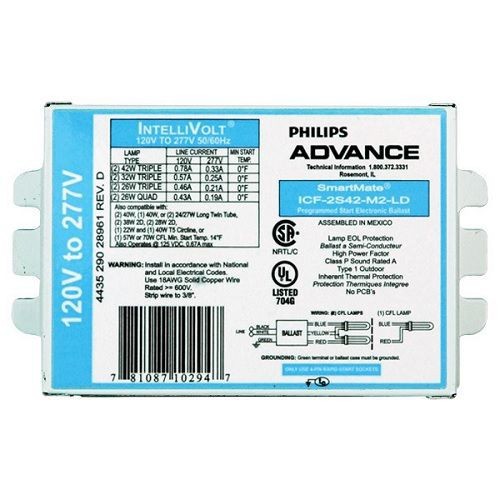

Advance SmartMate ICF2S42M2LDK Electronic Compact Fluorescent Ballast, CFL Lamp, 42 W Lamp, 120 to 277 VAC, Programmed, 0.97 Ballast Factor

Selected Advance SmartMate ICF2S42M2LDK Electronic Compact Fluorescent Ballast, CFL Lamp, 42 W Lamp, 120 to 277 VAC, Programmed, 0.97 Ballast Factor
Advance SmartMate ICF2S42M2LDK Electronic Compact Fluorescent Ballast, CFL Lamp, 42 W Lamp, 120 to 277 VAC, Programmed, 0.97 Ballast Factor

Short Description

Offering maximum versatility, the Philips Advance family of SmartMate® electronic ballasts for 4-pin compact fluorescent lamps drive a broad range of quad and triple tube, circline, 2D and long twin tube lamps. Representing an innovative breakthrough in CFL ballast technology, SmartMate® ballasts’ energy-efficient design, compact and lightweight housing and user-friendly features make SmartMate® ballasts an ideal choice for fixture manufacturers, retrofitters and MRO replacement. SmartMate® ballasts are ideal in such applications as restaurants, reception areas, conference and meeting rooms, hotel and convention center ballrooms and houses of worship, as well as in place of incandescent down lighting systems.

Features

  • Series lamp connection
  • Blue color label identification
  • 20 - 24 dB Average ambient noise level
  • High power factor
  • Length mounting feet with SmartMate® dual entry color coded connectors
  • IntelliVolt (120-277V) input voltage range
  • Color-coded connectors
  • 1 or 2 Lamp operation
  • Operates multiple lamp wattages
  • Reduces SKU requirements and inventory costs
  • Enhances wiring accuracy and ease-of assembly/installation
  • Eliminates interference with infrared systems, anti-theft devices, or other electronic equipment

Specification

Frequency Rating
50/60 Hz
Lamp Base Type
GX24Q
Lamp Type
CFTR42W/GX24Q
Lamp Wattage
42 W
Material
Metal
Number of Lamps
2
Power Factor
0.98
Series
SmartMate
Start Type
Programmed
Temperature Range
75 deg C
Total Harmonic Distortion
0.1
Voltage Rating
120 to 277 VAC
Application
Restaurants, Reception Areas, Conference and Meeting Rooms, Hotel and Convention Center Ballrooms
Standard & Approvals
UL File No. E14927, CSA File No. 007310, RoHS Compliant
Dimensions
4.98 in L x 3 in W x 1.29 in H
Ballast Factor
0.97
