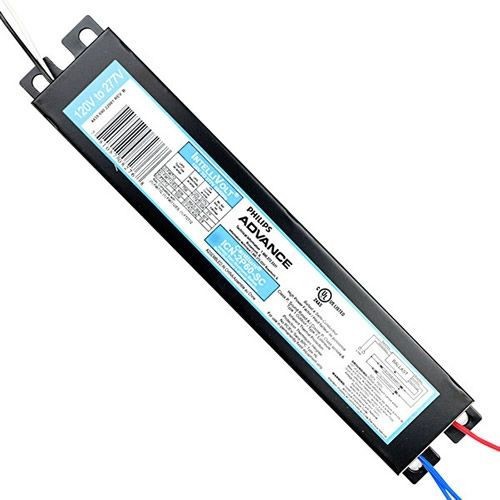

Advance Centium® ICN2P60N35I Electronic Fluorescent Ballast, T12 Slimline Lamp, 75 W Lamp, 120 to 277 VAC, Instant, 0.88 Ballast Factor

Selected Advance Centium® ICN2P60N35I Electronic Fluorescent Ballast, T12 Slimline Lamp, 75 W Lamp, 120 to 277 VAC, Instant, 0.88 Ballast Factor
Advance Centium® ICN2P60N35I Electronic Fluorescent Ballast, T12 Slimline Lamp, 75 W Lamp, 120 to 277 VAC, Instant, 0.88 Ballast Factor

Short Description

Reliable and energy efficient, Philips Advance’s line of Centium high frequency electronic ballasts for 8' T12 Slimline fluorescent lamps are a great replacement option when compared to magnetic ballasts. Lightweight with the same mounting configurations makes this an quick and easy retrofit solution.

Features

  • High power factor
  • T12 Slimline lamp type

Specification

Frequency Rating
50/60 Hz
Lamp Type
T12
Lamp Wattage
75 W
Material
Metal
Number of Lamps
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
0.48 to 1.13 A
Ballast Factor
0.88
Catalog ID
ADVICN2P60N35I
Dimensions
9.5 in L x 1.3 in W x 1 in H
Enclosure Type
NEMA 24
Power Factor
0.99
Start Type
Instant
Temperature Range
70 deg C
Total Harmonic Distortion
0.1
Voltage Rating
120 to 277 VAC
Wattage
135 to 132 W
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
