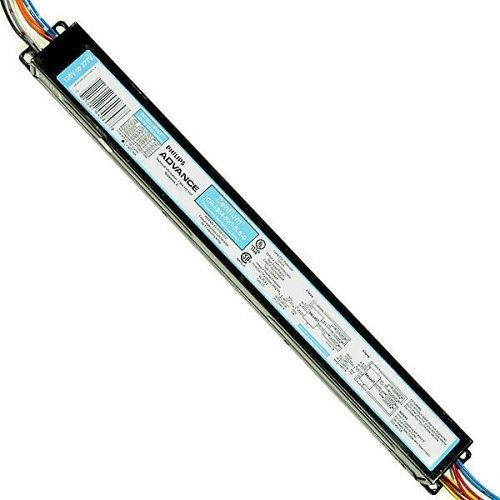

Advance Centium® ICN4S5490C2LSG35I Electronic Fluorescent Ballast, T5HO Lamp, 54 W Lamp, 120 to 277 VAC, Programmed, 1 Ballast Factor

Selected Advance Centium® ICN4S5490C2LSG35I Electronic Fluorescent Ballast, T5HO Lamp, 54 W Lamp, 120 to 277 VAC, Programmed, 1 Ballast Factor
Advance Centium® ICN4S5490C2LSG35I Electronic Fluorescent Ballast, T5HO Lamp, 54 W Lamp, 120 to 277 VAC, Programmed, 1 Ballast Factor

Short Description

No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90deg C rating) or not, our family of Philips Advance Centium ballasts are Ideal for a wide variety of applications.

Specification

Frequency Rating
50/60 Hz
Lamp Type
T5HO
Lamp Wattage
54 W
Material
Metal
Number of Lamps
4
Minimum Order Qty
1
Order Interval
1
Amperage Rating
0.86 to 2 A
Ballast Factor
1
Catalog ID
ADVICN4S5490C2LSG35I
Dimensions
16.7 in L x 1.7 in W x 1.18 in H
Power Factor
0.98
Start Type
Programmed
Temperature Range
90 deg C
Total Harmonic Distortion
0.1
Voltage Rating
120 to 277 VAC
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
