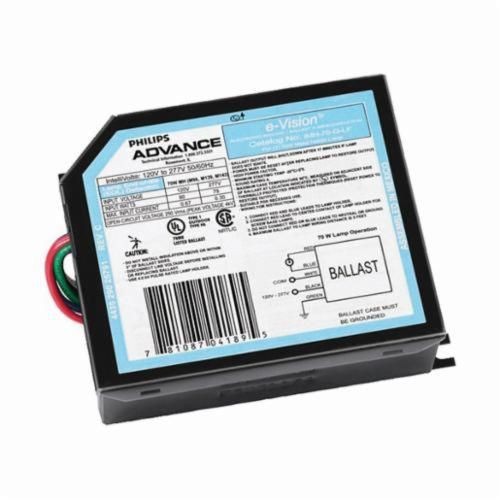

Advance e-Vision® IMH70GLFM Electronic HID Fixed Output Metal Halide Ballast, HID Metal Halide Lamp, 70 W Lamp, 120 to 277 VAC, Pulse, 1 Ballast Factor

Selected IMH70GLFMAdvance e-Vision® IMH70GLFM Electronic HID Fixed Output Metal Halide Ballast, HID Metal Halide Lamp, 70 W Lamp, 120 to 277 VAC, Pulse, 1 Ballast Factor
IMH70GLFMAdvance e-Vision® IMH70GLFM Electronic HID Fixed Output Metal Halide Ballast, HID Metal Halide Lamp, 70 W Lamp, 120 to 277 VAC, Pulse, 1 Ballast Factor

Short Description

Low frequency electronic ballasts are recommended by lamp manufacturers to drive the latest generation of ceramic, low wattage metal halide lamps. These ceramic lamps have superior color rendition and can potentially maintain that color over the life of the lamps when properly operated with electronic ballasts. Since color is dependent on proper lamp wattage, the electronic ballast must be able to maintain lamp wattage precisely at its rated point throughout the rated average life of the lamp. Low frequency electronic HID ballasts, such as the Philips Advance e-Vision line, constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps’ superior color properties. This makes ceramic metal halide operated by e-Vision ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting. Operational improvements are gained as greater efficiency and cooler running electronic ballasts lead to energy savings. In addition, ballasts run quieter, weigh less and have smaller footprints.

Features

  • M139/143 ANSI code
  • Low frequency electronic HID ballasts such as the Philips Advance eVision line constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps' superior color properties
  • This makes ceramic metal halide operated by e-Vision ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting
  • Leads (side exit) with mounting feet

Specification

Frequency Rating
50/60 Hz
Lamp Type
Metal Halide
Material
Metal
Minimum Starting Temperature
-20 deg F
Mounting Type
Surface
Number of Lamps
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
0.66 A
Ballast Factor
1
Catalog ID
ADVIMH70GLFM
Dimensions
3.9 in L x 3 in W x 1.2 in H
Enclosure Type
NEMA 4B
Start Type
Pulse
Temperature Range
90 deg C
Total Harmonic Distortion
0.15
Type
HID Low Wattage
Voltage Rating
120 to 277 VAC
Wattage
79 W
Standard & Approvals
UL Listed, CSA Certified, RoHS Compliant
Power Factor
0.9
Lamp Wattage
70 W
