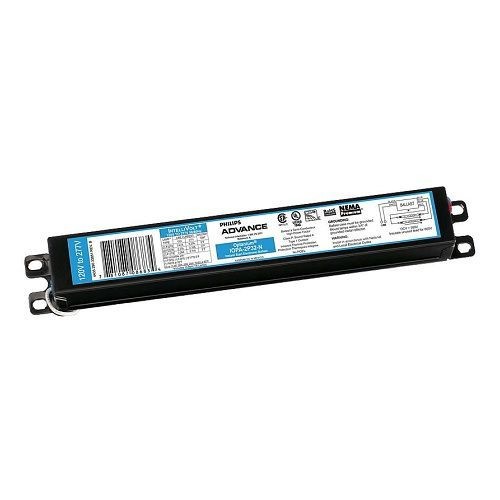

Advance OPTANIUM IOP4P32LWN35I Electronic Fluorescent Ballast, T8 Lamp, 32 W Lamp, 120 to 277 VAC, Instant/Rapid, 0.78 Ballast Factor
Advance OPTANIUM IOP4P32LWN35I Electronic Fluorescent Ballast, T8 Lamp, 32 W Lamp, 120 to 277 VAC, Instant/Rapid, 0.78 Ballast Factor
SKU: ADVIOP4P32LWN35I
Manufacturer Part Number: IOP4P32LWN35I
UPC: 781087125199
Documents
Short Description
Features
- High power factor
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Lamp Type | T8 |
| Lamp Wattage | 32 W |
| Material | Metal |
| Minimum Starting Temperature | -20 deg F |
| Number of Lamps | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.27 to 0.62 A |
| Ballast Factor | 0.98 |
| Catalog ID | ADVIOP4P32LWN35I |
| Dimensions | 9.5 in L x 1.3 in W x 1 in H |
| Dimmable | No |
| Enclosure Type | NEMA 22 |
| Power Factor | 0.98 |
| Start Type | Instant |
| Temperature Range | 70 deg C |
| Thermal Protection | Class P |
| Total Harmonic Distortion | 0.1 |
| Voltage Rating | 120 to 277 VAC |
| Application | Outdoor Use |
| Standard & Approvals | UL Listed, CSA Certified, RoHS Compliant |
