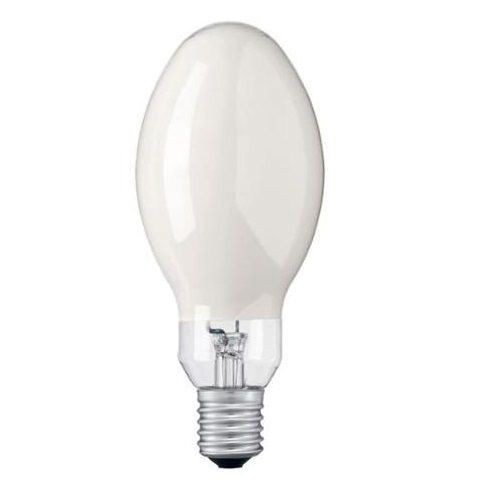

Philips 337139 HID Mercury Vapor Lamp, 100 W, E39 Mogul Mercury Vapor Lamp, ED23.5 Shape, 4200 Lumens

Selected FilesPHLH38JA 100 DX
FilesPHLH38JA 100 DX

Documents

Short Description

Mercury vapor lamps feature low initial cost, but have higher operating costs than HPS or metal halide Due to its lower efficiency the clear mercury bulb has a bluish green appearance and the Deluxe white has a higher color rendering. Mercury lamps get dimmer over time and rarely burn out, so it is wise to replace them and restore light level., standard high pressure mercury lamp.

Features

  • Universal operating position
  • 42 lm/W luminous efficiency
  • Hard glass bulb
  • 350 deg c bulb temperature
  • 210 deg c base temperature
  • 13.7 mg mercury content
  • Low initial cost, but have higher operating costs than HPS or metal halide Due to its lower efficiency
  • Clear mercury bulb has a bluish green appearance and the Deluxe white has a higher color rendering
  • Mercury lamps get dimmer over time and rarely burn out, so it is wise to replace them and restore light level
  • 120 to 140 V voltage

Specification

Lamp Base
E39 Mogul
Lamp Finish
Coated
Lamp Type
Mercury Vapor
Type
HID
Voltage Rating
130 VAC
Amperage Rating
0.85 A
Dimensions
188 mm H x 76 mm W
Average Life
15000
Ballast Type
H38
Color
Cool White
Color Rendering Index (CRI)
45
Designation
H38JA-100/DX 12PK
Color Temperature
3950
Wattage
100 W
Shape
ED-23.5
Lumens
4200 Lumens
