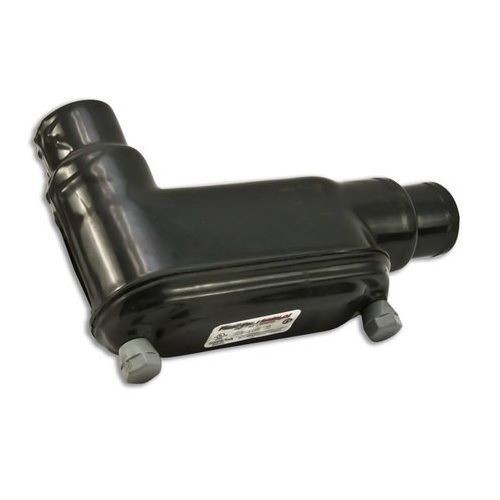

Robroy RedH2OT® PRHLB68 Type LB Conduit Body With Cover, 2 in Hub, Form 8 Form, Steel, PVC Coated

Selected Robroy RedH2OT® PRHLB68 Type LB Conduit Body With Cover, 2 in Hub, Form 8 Form, Steel, PVC Coated
Robroy RedH2OT® PRHLB68 Type LB Conduit Body With Cover, 2 in Hub, Form 8 Form, Steel, PVC Coated

Documents

Short Description

Plasti-Bond RedH2OT® conduit bodies with covers are offered in Form 8 and Form 7 styles, each with numerous configurations to provide a complete coated conduit system. May be used to make 90 deg bends, for pull outlets, to provide for taps or splices, to act as a mounting outlet for wiring devices or lighting fixtures etc. Form 8 style fittings 1/2 to 2 in have an integral V-Seal gasket for superior corrosion protection. Electrical continuity of the conduit system is maintained across assembled joints.

Features

  • 40 mil gray PVC exterior coating, 2 mil red urethane interior coating
  • Plasti-bond conduit bodies with covers are offered in form 8 and form 7 styles, each with numerous configurations to provide a complete coated conduit system
  • Sealing sleeves on all conduit openings
  • 10 CRFB sizes from 1/2 through 4 in
  • Form 7 style cover uses retained stainless screw and wedge clip design
  • Form 8 style cover uses plastic encapsulated stainless steel screws with retainers built into covers for CRFB sizes 1/2 in through 2 in

Specification

Hub Size
2 in
Material
Steel
Number of Hubs
2
Minimum Order Qty
1
Order Interval
1
Color
Gray/Red
Connection Type
Threaded
Finish
PVC Coated
Form
Form 8
Type
Type LB
Application
For 90 deg bends, taps or splices or mounting outlets, electrical and data wire raceways in harsh environments
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, UL 514B, CSA C22.2 No. 18
Series
PRHLB
Dimensions
13.04 in L x 4.85 in W x 3.79 in H
Catalog ID
KORPRHLB68
