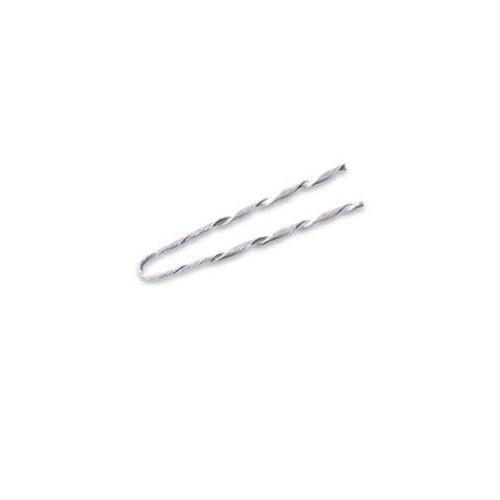

PLP® SG-4502 Service-Grip Dead-End, 6/1 and 7/1 Strand, 13 in L, For Use With ACSR, All-Aluminum Aluminum Alloy, Compacted ACSR Compacted All-Aluminum Conductor, Steel

Selected SG-4502PLP® SG-4502 Service-Grip Dead-End, 6/1 and 7/1 Strand, 13 in L, For Use With ACSR, All-Aluminum Aluminum Alloy, Compacted ACSR Compacted All-Aluminum Conductor, Steel
SG-4502PLP® SG-4502 Service-Grip Dead-End, 6/1 and 7/1 Strand, 13 in L, For Use With ACSR, All-Aluminum Aluminum Alloy, Compacted ACSR Compacted All-Aluminum Conductor, Steel

Documents

Features

  • The dead-end is recommended for service drops by reason of minimum length, economy and neatness of appearance
  • The loops of service-grip dead-ends should not be crisscrossed, when two or more are applied to the same spool
  • Lay direction of most neutral-messengers is right hand lay
  • 4 AWG (6/1, 7/1) ACSR, 4 AWG all-aluminum and aluminum alloy, 4 AWG (6/1, 7/1) compacted ACSR nominal conductor size

Specification

Length
13 in
Material
Steel
Minimum Order Qty
1
Order Interval
1
Catalog ID
PFMSG4502
Color
Orange
Finish
Aluminum
Specifications
2-3/8 in Dia Neck
Strand Size
6/1 and 7/1
Suitable For Use With
ACSR, All-Aluminum Aluminum Alloy, Compacted ACSR Compacted All-Aluminum Conductor
Application
For bare neutral messengers of self-supporting cable used in making service drops
