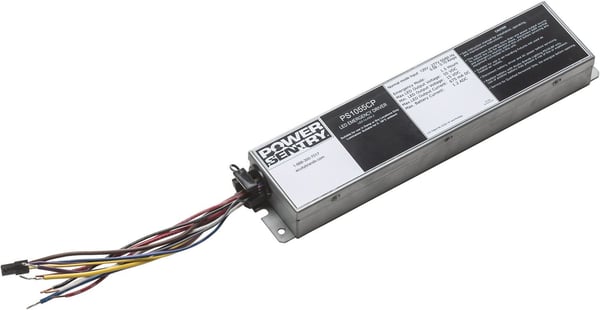

Power Sentry® PS1055CP M9 Constant Power Standard Profile Emergency Driver, Lithium-Iron Phosphate, 120 to 277 VAC Nominal, 10 W Nominal

Selected PS1055CP M9Power Sentry® PS1055CP M9 Constant Power Standard Profile Emergency Driver, Lithium-Iron Phosphate, 120 to 277 VAC Nominal, 10 W Nominal
PS1055CP M9Power Sentry® PS1055CP M9 Constant Power Standard Profile Emergency Driver, Lithium-Iron Phosphate, 120 to 277 VAC Nominal, 10 W Nominal

Documents

Short Description

The Power Sentry® emergency drivers are technologically the most advanced, intelligent, and versatile Class 2 emergency drivers available to the industry today. The new standard profile emergency drivers are UL listed for universal field-install in both Acuity Brands® and non Acuity Brands® Class 2 luminaires. The constant power PS1055CP standard profile provides constant light output for over 90 min of emergency operation. This standard profile emergency driver employs a lithium iron phosphate battery to minimize the size of the product. The PS1055CP is available for high volume commercial lay-in luminaires and offers the FMC option for installing on down lights or remote mounting in a plenum.

Features

  • Class 2, constant power output over 90 min
  • Two wire universal AC input
  • Integrated self-diagnostics standard
  • AC activate eliminates need for manual activation eliminating a common cause of costly service calls
  • Compact, low profile form factor for narrow driver channels
  • Double Isolation safeguard technology helps protect against failures or feedback from other devices in the luminaire compromising the functionality of the emergency driver
  • Without flexible metal conduit

Specification

Type
Constant Power Standard Profile
Application
Education, Government, Healthcare, Hospitality, Manufacturing, Offices, Banks, Religious, Retail and Indoor Applications
Standard & Approvals
A+ Certified, BC Approved, California Title 20 Compliant, CEC Certified, cULus Listed, NEC Certified, NFPA 70/101, OSHA Approved, UL Listed, UL 924/1310
Chemical System
Lithium-Iron Phosphate
Charging Time
24 hr
Charge Current
25 mA
Case Material
Steel
Dimensions
10.48 in L x 2.34 in W x 1.18 in H
Terminal Type
Lead Wire
Suitable For Use With
Damp Location Luminaires
Shelf Life
12 months
Series
PS1055CP
Nominal Voltage
120 to 277 VAC
Nominal Capacity
10 W
Maximum Discharge Current
660 mA
Discharge Cut-Off Voltage
15 to 55 VDC
