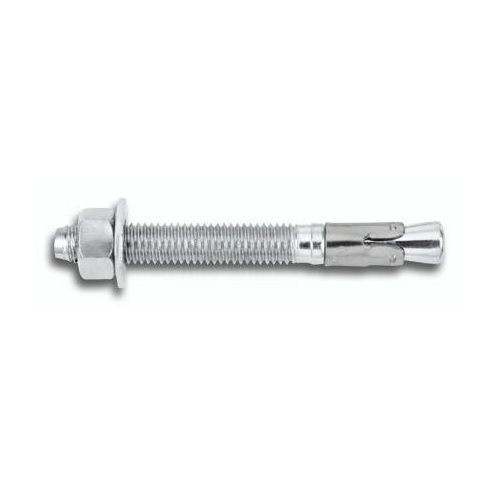

DeWALT® Power-Stud+® SD1 7410SD1 Expansion Wedge Anchor, 3/8 in Dia, 2-1/4 in OAL, 7/8 in L Thread, Carbon Steel, Zinc Plated
DeWALT® Power-Stud+® SD1 7410SD1 Expansion Wedge Anchor, 3/8 in Dia, 2-1/4 in OAL, 7/8 in L Thread, Carbon Steel, Zinc Plated
SKU: RAW7410SD1
Manufacturer Part Number: 7410SD1
UPC: 075352775937
Specification
| Material | Carbon Steel |
|---|---|
| Thread Type | UNC |
| Diameter | 3/8 in |
| Standard & Approvals | Tested in Accordance with ASTM E488 and AC01 Criteria;FM Global (Factory Mutual) - File No. J.I. OK3A9.AH;Underwriters Laboratory (UL Listed) - File No. EX1289;Federal GSA Specification;Meets the Descriptive and Proof Load Requirements of CID A-A-1923A Ty |
| Application | Lighting Standards And Base Plates;Sills And Support Ledgers;Retrofit Projects And Machinery Anchorage;Food And Beverage Facilities;Water Treatment Plants And Marine Applications |
| Type | Wedge |
| Series | Power-Stud |
| Minimum Embedment Depth | 1-5/8 To 4.25 in - Normal Weight Concrete |
| Head Style | Threaded Stud |
