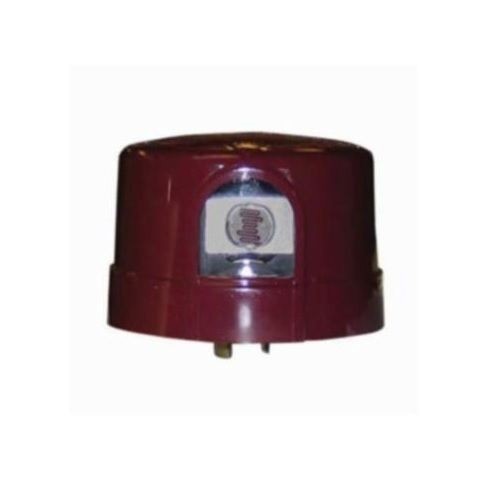

Precision Multiple Controls P68275(BP) P Series Delayed Response Utility Grade Thermal Photo Control, 208/277 VAC, 1800 VA Ballast, Turn Lock Mount, UV Stabilized Polypropylene
Precision Multiple Controls P68275(BP) P Series Delayed Response Utility Grade Thermal Photo Control, 208/277 VAC, 1800 VA Ballast, Turn Lock Mount, UV Stabilized Polypropylene
SKU: PREP-68275
Manufacturer Part Number: P-68275
UPC: 720563762732
Features
- 1:3 turn-on/off ratio
- 1.1 W average at 120 VAC
- Built-in time-delay prevents false cycling caused by lightning flashes or stray headlights
- 1/2 in broad surface sensing element sensor
- High-impact housing
Specification
| Material | UV Stabilized Polypropylene |
|---|---|
| Mounting Type | Turn Lock |
| Operating Cycles | 5000 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Arrester | 320 J MOV |
| Ballast Load | 1800 VA |
| Contact Form | SPST |
| Dimensions | 3.07 in Dia x 2.15 in H |
| Environmental Conditions | -40 to 170 deg F Temperature |
| Series | P Series |
| Type | Delayed Response Utility Grade |
| Voltage Rating | 208/277 VAC |
| Standard & Approvals | ANSI Specified, CSA Certified, cULus Listed |
| Timing Range | 15 s |
| Sensor Type | Cadmium Sulfide Light Sensitive Element |
| Sensitivity | 1 to 3 FC (ON) |
| Catalog ID | PREP-68275 |
