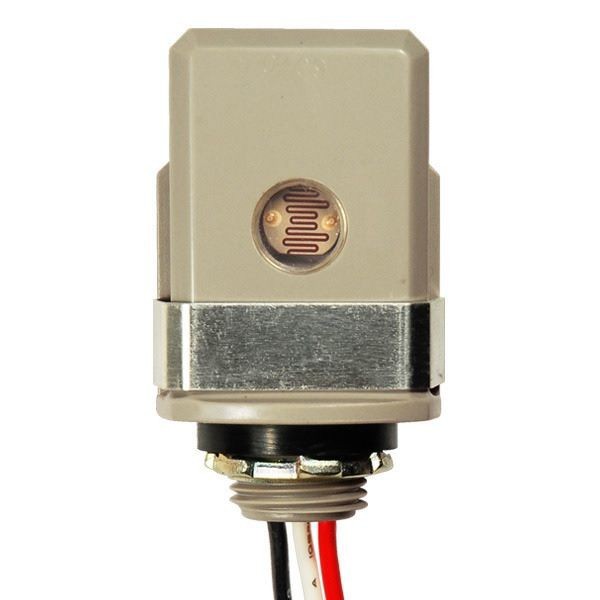

Precision Multiple Controls T-168 T Series Photocontrol, 120 VAC, 1800 W Tungsten, 1800 VA Ballast
Precision Multiple Controls T-168 T Series Photocontrol, 120 VAC, 1800 W Tungsten, 1800 VA Ballast
SKU: PRET-168
Manufacturer Part Number: T-168
UPC: 720563801684
Features
- Swivel T-series (ST) is equipped with a swivel mount which allows installer to swivel light sensitive element to the best position for operation
- Weatherproof lexan housing or vandal proof die cast aluminum housing
- Broad surface sensing element
- 1 to 3 ft candles, external light level slide allows field adjustment between 3 to 10 ft candles
- 1:3 turn on/off ratio
- 1-pole, single-throw, contact position at night normally closed switch type
- -40 to 158 deg F temperature range
- Moisture proof, color-coded lead wire
- 6 in wire length
- 1/2-14 thread, and fits 1/2 in knock out
Specification
| Voltage Rating | 120 VAC |
|---|---|
| Standard & Approvals | UL Listed, CSA Certified |
| Ballast Load | 1800 VA |
| Color | Gray |
| Dimensions | 2 in H x 1-1/2 in W x 1 in D |
| Tungsten Rating | 1800 W |
| Series | T |
