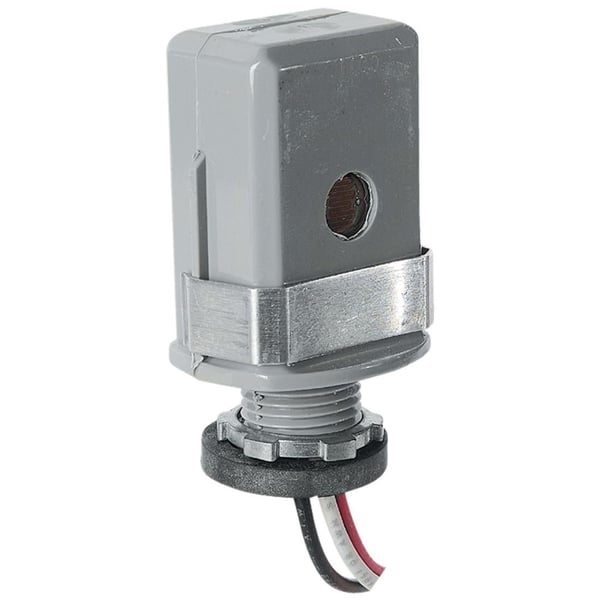

Precision Multiple Controls T15(BP) Lumatrol T Wire-In Swivel Mount Photocontrol, 120 VAC, 2000 W Tungsten, 1800 VA Ballast, Threaded Mount, Lexan®
Selected Precision Multiple Controls T15(BP) Lumatrol T Wire-In Swivel Mount Photocontrol, 120 VAC, 2000 W Tungsten, 1800 VA Ballast, Threaded Mount, Lexan®
Precision Multiple Controls T15(BP) Lumatrol T Wire-In Swivel Mount Photocontrol, 120 VAC, 2000 W Tungsten, 1800 VA Ballast, Threaded Mount, Lexan®
SKU: PRET-15BP
Manufacturer Part Number: T15(BP)
Features
- Broad surface sensing element
- External light level slide allows field adjustment between 3 to 10 foot-candles
- 1:3 turn ON/OFF ratio
- Single-pole, single-throw switch type
- Moisture proof, color-coded lead wire and 6 in L wire
Specification
| Material | Lexan® |
|---|---|
| Mounting Type | Threaded |
| Sensitivity | 1 to 3 fc Turn On |
| Sensor Type | Photocell |
| Series | Lumatrol T |
| Timing Range | 15 sec |
| Tungsten Rating | 2000 W |
| Type | Wire-In |
| Voltage Rating | 120 VAC |
| Wire Size | 6 in Lead |
| Standard & Approvals | UL Listed, CSA Certified |
| Dimensions | 2 in H x 1-1/2 in W x 1 in D |
| Ballast Load | 1800 VA |
| Contact Form | NC |
| Environmental Conditions | -40 to 158 deg F |
