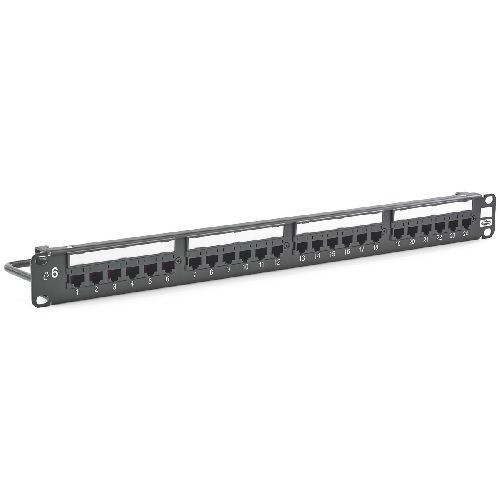

PREMISE WIRING NEXTSPEED® HP624 Telephone Loaded Patch Panel, 24 Ports, Cat 6, Composite/Steel

Selected PREMISE WIRING NEXTSPEED® HP624 Telephone Loaded Patch Panel, 24 Ports, Cat 6, Composite/Steel
PREMISE WIRING NEXTSPEED® HP624 Telephone Loaded Patch Panel, 24 Ports, Cat 6, Composite/Steel

Documents

Short Description

NEXTSPEED® 6 series patch panels are assembled in the USA and backed by Hubbell® 25 years application assurance warranty. They provide a rugged, reliable, solution supporting todays high bandwidth mission critical applications.

Features

  • Next margin over TIA 568-C.2 and ISO 11801 Class E channel specifications 1-250MHz
  • Exceeds component requirements of TIA-568-C.2 Cat 6 and IEC Cat 6 components
  • 100% factory tested
  • Integrated labeling and icon slots for TIA-606-B compliance
  • Universal wiring A/B, straight

Specification

Material
Composite/Steel
Mounting Type
Racks
Number of Ports
24
Minimum Order Qty
1
Order Interval
1
Catalog ID
HPWHP624
Category Type
Cat 6
Color
Black
Type
Telephone
Wiring Code
T568A/T568B
Application
IEEE802.3b 1000 BASE-T ETHERNET, IEEE 802.3at PoE and TIA TSB-155 10GbE Over 55 m
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, ANSI/TIA/EIA 568-C.2, cULus, ETL Listed, ISO/IEC 11801/60603-7-41, UL 1863
