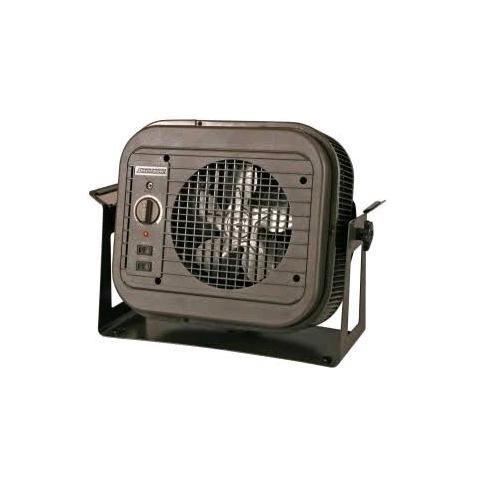

QMARK® MUH35 Heavy-Duty Unit Heater With Built-In Thermostat, 5/3.332 kW, 208/240 VAC
QMARK® MUH35 Heavy-Duty Unit Heater With Built-In Thermostat, 5/3.332 kW, 208/240 VAC
SKU: QMKMUH35
Manufacturer Part Number: MUH35
UPC: 685360047577
Documents
Features
- Mounts either on the wall or from the ceiling can be used for primary or spot heating
- Fan only switch allows fan to cycle automatically with elements or run continuously for air movement when no heat is required
- Built-in bi-metal thermostat with range of 40 to 90 deg F
- Heavy gauge die-formed steel housing
- Advanced pull-through air flow design draws air across heating element for more even air distribution and cooler element operation
- Specially designed venturi outlet to meet that added throw as required in vertical position
- Completely enclosed fan motor
- Aluminum-finned, copper clad steel sheath heating element has longer useful life, because of cooler sheath temperature and faster heat dissipation
- Heater uses a manual reset thermal cut-off with reset button located on front for easy access
- 17060/11372, 12795/8530 BTU/hr
- 21.0/14.0, 18.0/12.0 A
- 5000/3332 W, 3750/2500 W power rating
Specification
| Material | Steel |
|---|---|
| Mounting Height | 14 in |
| Mounting Type | Wall/Ceiling |
| Power Rating | 5000/3332 W |
| Temperature Rating | 40 to 90 deg F |
| Type | Heavy-Duty |
| Voltage Rating | 208/240 VAC |
| Application | For Factories, Garages and Schools |
| Standard & Approvals | NEC, OSHA Approved, UL Listed |
| Dimensions | 22 in W x 8 in D x 16 in H |
| Capacity | 17060/11372 Btu/hr |
| Color | Charcoal Gray |
| Flow Rate | 210 cfm |
| Amperage Rating | 21/14 A |
