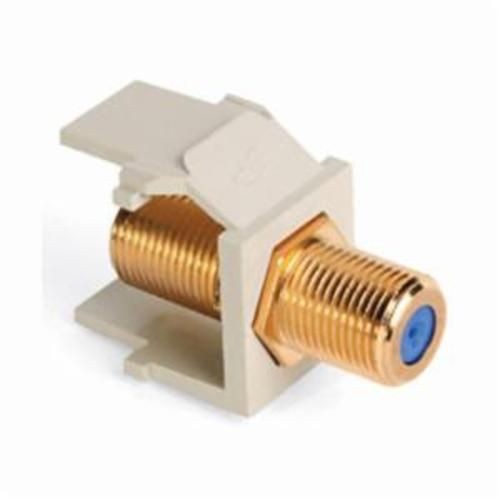

Leviton® QuickPort® 40831-BI Type F Feed-Through Adapter, Female End A, Female End B, Ivory

Selected 40831-BILeviton® QuickPort® 40831-BI Type F Feed-Through Adapter, Female End A, Female End B, Ivory
40831-BILeviton® QuickPort® 40831-BI Type F Feed-Through Adapter, Female End A, Female End B, Ivory

Documents

Short Description

Nickel or gold plated female to female 75 Ohm connector features screw on front and rear connections. Pass through design applications: TV, VCR, DVD, satellite and home theater. Cable: coaxial cable terminated with "F" plugs. QuickPort® F-Type adapters snap into any QuickPort® housing, including flush and surface mount outlets, multimedia outlet system (with adapter), Decora® Inserts, patch panels and patch blocks.

Features

  • Compatible with all QuickPort® wallplates and housings
  • Frequency range equals DC - 3.0 GHz
  • Female to female adapter for quick screw on connections

Specification

Impedance
75
Installation Type
Surface/Flush
Material
Brass
Minimum Order Qty
1
Order Interval
1
Cable Type
RG6/RG59 Coaxial
Catalog ID
LEV40831-BI
Color
Ivory
Connection Type
Screw Terminal
Dimensions
0.64 in H x 0.58 in W x 1.24 in D
End A Type
Female
End B Type
Female
Finish
Gold Plated
Type
Type F
Application
Commercial
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, cULus Listed, UL 1863, CAN/CSA-C22.2 No. 182.4-1990, SCTE Compliant
