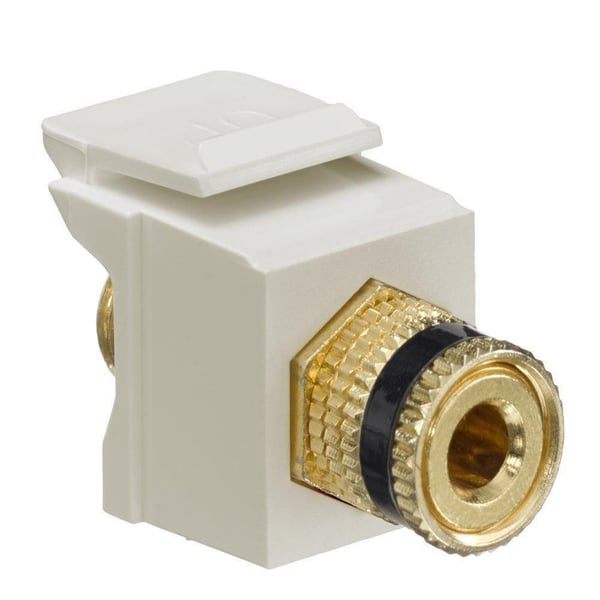

Leviton® QuickPort® 40833-BIE Feed Through Fire Retardant Snap-In Binding Post Connector With Black Stripe, Screw Termination, Plastic

Selected 40833-BIELeviton® QuickPort® 40833-BIE Feed Through Fire Retardant Snap-In Binding Post Connector With Black Stripe, Screw Termination, Plastic
40833-BIELeviton® QuickPort® 40833-BIE Feed Through Fire Retardant Snap-In Binding Post Connector With Black Stripe, Screw Termination, Plastic

Documents

Short Description

Binding Post QuickPort Connectors provide connectivity for workstation cabling for speaker wire. The connectors snap into any QuickPort housing: flush- and surface-mount outlets, Multimedia Outlet System (with adapter), Decora® Inserts, patch panels, and patch blocks.

Features

  • The connectors for audio connectivity shall be individual snap-in style screw terminal to binding post adapters and shall fit all other installed telecommunications wallplates, outlets and field-configurable patch panels and patch blocks
  • All plastics used in construction of the module bodies shall be fire-retardant
  • Compatible with Banana jack connectors
  • Connector bodies are high impact, fire-retardant plastic rated UL 94V-0
  • Binding post is gold flash plated 5 to 15 um

Specification

Material
High Impact Plastic
Suitable For Use With
QuickPort® Wallplates, Housings and Panels
Termination Type
Threaded
Type
Feed-Through Snap-In
Standard & Approvals
cULus/UL 1863, CAN/CSA-C22.2 No. 182.4-1990
Dimensions
0.636 in H x 0.575 in W x 1.19 in D
Color
Ivory
Finish
Gold Flash Plated
