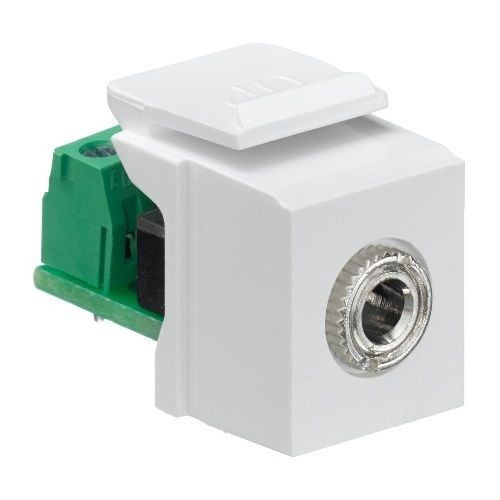

Leviton® QuickPort® 40839-SWS Fire Retardant Stereo Connector With 3.5 mm Stereo Jack, Snap-In/Female to Screw Connector

Selected 40839-SWSLeviton® QuickPort® 40839-SWS Fire Retardant Stereo Connector With 3.5 mm Stereo Jack, Snap-In/Female to Screw Connector
40839-SWSLeviton® QuickPort® 40839-SWS Fire Retardant Stereo Connector With 3.5 mm Stereo Jack, Snap-In/Female to Screw Connector

Documents

Short Description

Leviton 3.5 mm Stereo or miniature connector is typically used for three-conductor audio applications. Also referred to as a 1/8 in stereo connector, using a tip-ring sleeve configuration for signal transmission Ideal for computer stereo applications.

Features

  • QuickPort® connector used for stereo audio signals with a common ground
  • Ideal for computer stereo applications
  • Compatible with male plugs for headsets
  • Screw terminal connection for quicker field installation
  • Compatible with all QuickPort® wallplates and housings
  • 3.5 mm stereo to screw terminals

Specification

Material
High Impact Plastic
Application
Commercial
Cable Size
24 to 22 AWG
Color
White
Connector Type
Snap-In/Female to Screw
Dimensions
0.58 in L x 0.97 in W x 0.64 in H
Standard & Approvals
ARRA/RoHS Compliant, cULus Listed, UL 1863, UL 94 V0, CAN/CSA-C22.2 No 182.4-1990, ISO 9001
Type
Fire Retardant
