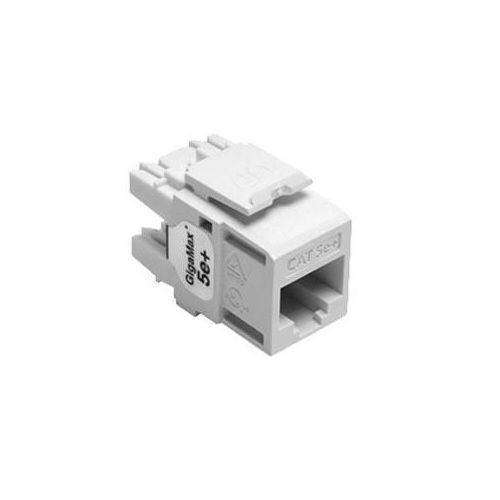

Leviton® GigaMax® QuickPort® 5G110-RW5 8-Conductor 8-Position Component Rated UTP Connector, Cat 5e Module, Surface/Panel Mount, 1 Ports, Plastic, White

Selected Leviton® GigaMax® QuickPort® 5G110-RW5 8-Conductor 8-Position Component Rated UTP Connector, Cat 5e Module, Surface/Panel Mount, 1 Ports, Plastic, White
Leviton® GigaMax® QuickPort® 5G110-RW5 8-Conductor 8-Position Component Rated UTP Connector, Cat 5e Module, Surface/Panel Mount, 1 Ports, Plastic, White

Documents

Short Description

The eXtreme Cat 5e Component-Rated UTP Connector is designed to be used with all Leviton QuickPort compatible products. The connector includes patented Retention Force Technology which promotes consistent performance over the life of the system. It includes unique pair separation towers allowing for quicker and easier terminations. The connector is in a 180-degree configuration with the punch field in the back, allowing for rear termination.

Features

  • 8P8C Contact
  • Flammability (Rated V-0 Per UL94) environmental conditions
  • Component-rated, Fire Retardant, Patented Retention Force Technology (RFT), unique pair separation tower allows for quick and easier termination, dual-layer T568B/T568A wiring label simplifies punchdown
  • Terminates 26-22-gauge solid conductors, capable of multiple re-terminations
  • Gas-tight IDC connectors prevent corrosion
  • Patented retention force technology protects tines from damage and increases system longevity
  • Pair separation tower design facilitates separation of conductors and minimizes untwisting
  • 180 deg configuration allows for rear termination
  • Capable of multiple re-terminations
  • Wallplate, Panel mounting
  • GigaMax Category 5e+ module
  • Fire-Retardant Plastic

Specification

Material
Plastic
Module Type
Cat 5e+
Mounting Type
Panel
Number of Ports
1
Minimum Order Qty
1
Order Interval
1
Video
https://youtu.be/4kndMLuqxzM?rel=0
Catalog ID
LEV5G110-RW5
Color
White
Dimensions
0.89 in H x 0.64 in W x 1.21 in D
Application
Used in conjunction with other QuickPort snap-in modules for voice/data and video applications over UTP, coax, and fiber
Standard & Approvals
ANSI\TIA-568-C.2, ISO\IEC 11801, ANSI\TIA-1096-A (Formerly FCC Part 68), cULus Listed, CSA Certified, RoHs Compliant
