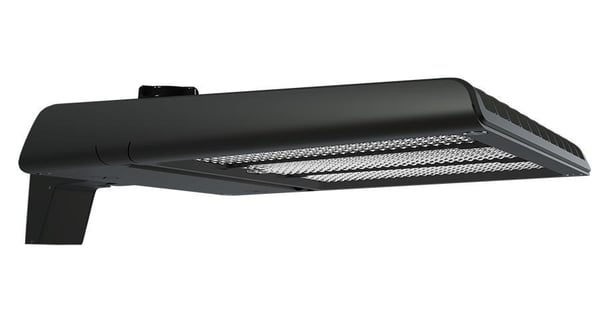

RAB A22-4T320 A22 Type IV Distribution Area Light, LED Lamp, 245 to 332.2 W Fixture, 120 to 277 V, Bronze Housing
RAB A22-4T320 A22 Type IV Distribution Area Light, LED Lamp, 245 to 332.2 W Fixture, 120 to 277 V, Bronze Housing
SKU: RABA22-4T320
Manufacturer Part Number: A22-4T320
UPC: 192552035392
Features
- 7-Pin Receptacle with Shorting Cap
Specification
| Light Output | 123.1 to 150.2 Lumens/W |
|---|---|
| Lumens | 33720 to 43975 Lumens |
| Lens Type | Polycarbonate |
| Series | A22 |
| Housing Material | Die Cast Aluminum |
| Enclosure Type | IP66 |
| Color Temperature | 3000/4000/5000 K |
| Lamp Type | LED |
| Average Life | 100000 hr |
| Ballast Type | 0 to 10 V Dimming |
| Voltage Rating | 120 to 277 V |
| Mounting Type | Pole Mounted |
| Housing Finish | Bronze |
| Amperage Rating | 2.66 to 0.9 A |
| Fixture Wattage | 245 to 332.2 W |
| Lamp Wattage | 320, 280, 250 W |
| Type | Type IV Distribution |
| Color Rendering Index (CRI) | 80 to 84 |
| Dimensions | 8 in H x 14-1/4 in W x 26 in L |
