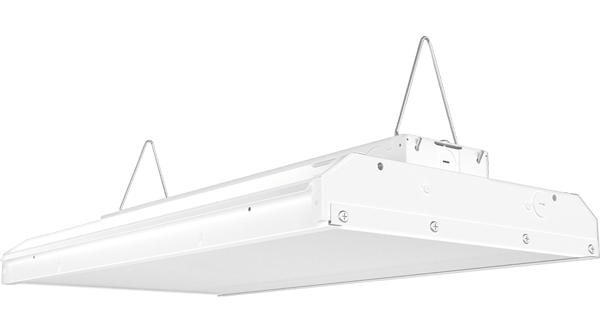

RAB AEROBAY® ARBAY2-95 Linear LED High Bay Fixture, LED Lamp, 97.9 W Fixture, 120 to 277 V, Polyester Powder Coated Housing

Selected ARBAY2-95RAB AEROBAY® ARBAY2-120 Linear LED High Bay Fixture, LED Lamp, 116.6 W Fixture, 120 to 277 V, Polyester Powder Coated Housing
ARBAY2-95RAB AEROBAY® ARBAY2-120 Linear LED High Bay Fixture, LED Lamp, 116.6 W Fixture, 120 to 277 V, Polyester Powder Coated Housing

Documents

Short Description

The new generation of AEROBAY® are even more efficient up to 142 Lumens/W and each size is offered in higher lumen packages. Its LED lifespan is now also double, making this an economy high bay family that delivers high-end performance.

Features

  • High efficiency, low price
  • Economical linear high bay delivers versatility and ultra high efficiency
  • Half the size, double the options and even more affordable
  • Patent pending, retractable design reduces volume by up to 60% to save valuable shelf and storage space
  • 0.81 A at 120 VAC, 0.48 A at 208 VAC, 0.41 A at 240 VAC, 0.36 A at 277 VAC current rating
  • Mercury-free and UV-free
  • Class 2 constant current, 0 to 10 V dimming driver

Specification

Housing Finish
Polyester Powder Coated
Housing Material
Die Formed Steel
Lamp Type
LED
Lens Type
Clear/Frosted Polycarbonate
Light Color
Cool White
Lighting Technology
Multi-Chip
Mounting Type
Ceiling
Series
ARBAY
Type
Linear
Voltage Rating
120 to 277 V
Application
For industrial warehouse spaces
Standard & Approvals
RoHS Compliant, UL Listed for Damp Locations, DLC Premium Listed, ANSI C78.377-2017, IESNA LM-79/LM-80
Amperage Rating
0.36/0.41/0.48/0.81 A
Average Life
100000 hr
Color Rendering Index (CRI)
85
Color Temperature
5000 K
Fixture Wattage
97.9 W
Includes
(2) 42 in Chains, V-Hook and Screw
Lumens
13360 Lumens
Light Output
136.5 Lumens/W
Lamp Wattage
95 W
Dimensions
24-1/8 in L x 12-1/2 in W x 3-1/2 in H
