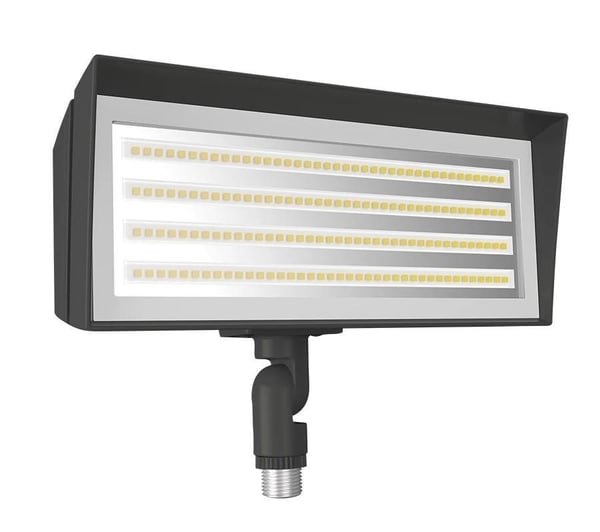

RAB FFLEDS FFLED Field-Adjustable Floodlight, LED Lamp, 120, 208, 240, 277 V
RAB FFLEDS FFLED Field-Adjustable Floodlight, LED Lamp, 120, 208, 240, 277 V
SKU: RABFFLEDS
Manufacturer Part Number: FFLEDS
UPC: 192552016513
Features
- Ultra-efficient LED and optical design
Specification
| Series | FFLED |
|---|---|
| Type | Field-Adjustable |
| Voltage Rating | 120, 208, 240, 277 V |
| Application | 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Standard & Approvals | BAA Compliant, ANSI C78.377-2017, DLC 5.1, Mercury Free, RoHS, IESNA LM-79 and LM-80, UL Listed, PROP65 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.15, 0.09, 0.08, 0.07, 0.25, 0.14, 0.13, 0.11, 0.38, 0.22, 0.19, 0.17 A |
| Average Life | 100000 hr |
| Ballast Type | 0 to 10 V Dimmable |
| Catalog ID | RABFFLEDS |
| Color Rendering Index (CRI) | 83 CRI |
| Color Temperature | 4000 K |
| Dimensions | 7.5 in H x 9.5 in W x 4.88 in D |
| Enclosure Type | NEMA 7H x 6V/IP66 |
| Lamp Type | LED |
| Lamp Wattage | 18, 26, 39 W |
| Lens Type | Tempered Glass |
| Light Color | Neutral |
| Light Output | 134.5 to 145.8 Lumens/W |
| Lumens | 2615 to 6243 Lumens |
| Mounting Type | Knuckle |
| Housing Material | Die-cast Aluminum |
| Includes | Dimming control wiring for 0-10V dimming systems |
