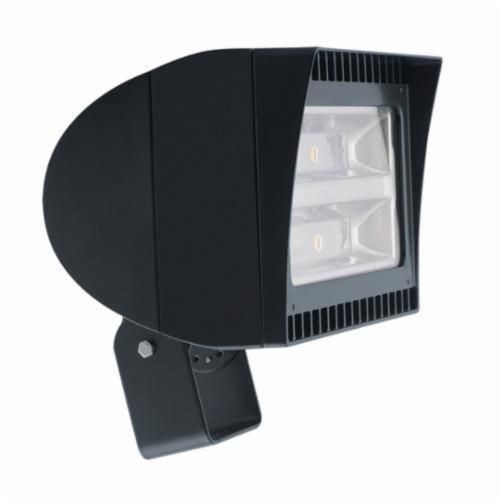

RAB FXLED105T Standard Floodlight Fixture, LED Lamp, 106 W Fixture, 120/208/240/277 VAC, Bronze Housing
RAB FXLED105T Standard Floodlight Fixture, LED Lamp, 106 W Fixture, 120/208/240/277 VAC, Bronze Housing
SKU: RABFXLED105T
Manufacturer Part Number: FXLED105T
UPC: 019813926360
Documents
Features
- Ultra high output, high efficiency LED floodlight with wide NEMA type 6H x 6V beam spread
- Patent Pending airflow technology ensures long LED and driver lifespan
- 66 percent energy cost savings vs. HID
- Air-Flow technology heat dissipation
- No photocell
- 5000 K (Cool)
- 0.89 A, 208 V: 0.58 A, 240 V: 0.5 A, 277 V: 0.44 A amperage rating
- Die Cast Aluminum housing
Specification
| Housing Finish | Bronze |
|---|---|
| Housing Material | Aluminum |
| Lamp Type | LED |
| Lamp Wattage | 105 W |
| Lumens | 10908 Lumens |
| Mounting Type | Trunnion |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.89/0.58/0.5/0.44 A |
| Average Life | 100000 hr |
| Catalog ID | RABFXLED105T |
| Color Rendering Index (CRI) | 65 |
| Color Temperature | 5000 K |
| Dimensions | 14 in L x 9 in W x 9 in H |
| Enclosure Type | NEMA 7H x 6V/IP65 |
| Fixture Wattage | 106 W |
| Type | Constant Current Standard |
| Voltage Rating | 120/208/240/277 VAC |
| Application | Wet Locations, Building Facade Lighting, Sign Lighting, Led Landscape Lighting and Instant-on Security Lighting |
