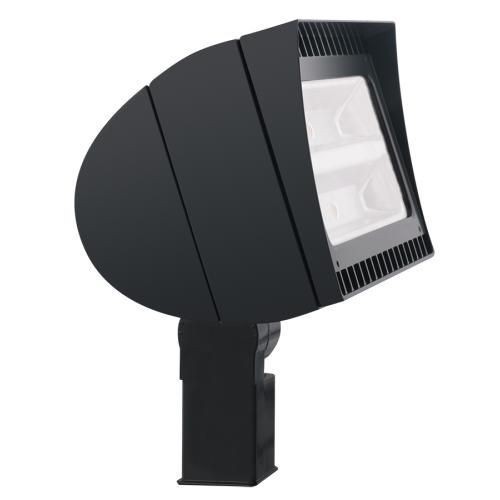

RAB FXLED150SF Standard Floodlight Fixture With 120 to 277 VAC ON/OFF Driver, LED Lamp, 155 W Fixture, 120/208/240/277 VAC, Bronze Housing
RAB FXLED150SF Standard Floodlight Fixture With 120 to 277 VAC ON/OFF Driver, LED Lamp, 155 W Fixture, 120/208/240/277 VAC, Bronze Housing
SKU: RABFXLED150SF
Manufacturer Part Number: FXLED150SF
UPC: 019813105130
Features
- Ultra high output, high efficacy LED floodlight with wide NEMA type 6H x 6V beam spread
- Patent pending airflow technology ensures long LED and driver lifespan
- 66% energy cost savings vs HID
- Air flow technology heat dissipation
- 1.31 A at 120 VAC, 0.8 A at 208 VAC, 0.69 A at 240 VAC, 0.6 A at 277 VAC
- Without photocell
Specification
| Housing Finish | Bronze |
|---|---|
| Housing Material | Die Cast Aluminum |
| Lamp Type | LED |
| Lamp Wattage | 150 W |
| Lens Type | Specular Polycarbonate Reflector |
| Light Color | Cool White |
| Lumens | 14440 Lumens |
| Mounting Type | Slipfitter |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 1.31/0.8/0.69/0.6 A |
| Average Life | 100000 |
| Ballast Type | Class 2 Constant Current |
| Catalog ID | RABFXLED150SF |
| Color Rendering Index (CRI) | 65 |
| Color Temperature | 5000 |
| Dimensions | 9 in H x 14 in W x 9 in D |
| Enclosure Type | NEMA 7H x 6V/IP66 |
| Fixture Wattage | 155 W |
| Series | FXLED |
| Type | Standard |
| Voltage Rating | 120/208/240/277 VAC |
| Application | Building Facade Lighting, Sign Lighting, LED Landscape Lighting, Instant-On Security Lighting and Wet Location |
| Standard & Approvals | ANSI C78.377, California Title 24, UL, DLC Listed, IESNA LM-79, 80 |
