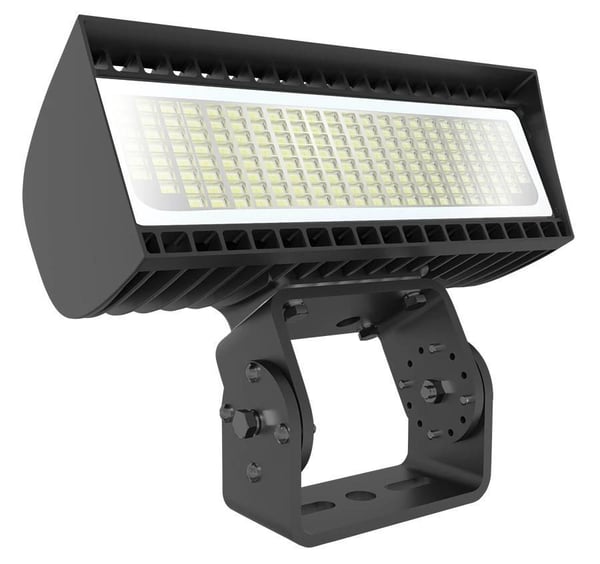

RAB FXLEDST FXLED Field-Adjustable Floodlight, LED Lamp, 120, 208, 240, 277 V
RAB FXLEDST FXLED Field-Adjustable Floodlight, LED Lamp, 120, 208, 240, 277 V
SKU: RABFXLEDST
Manufacturer Part Number: FXLEDST
UPC: 192552019309
Features
- IP66 Rating protects against dust and water ingress
Specification
| Series | FXLED |
|---|---|
| Type | Field-Adjustable |
| Voltage Rating | 120, 208, 240, 277 V |
| Application | 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Standard & Approvals | BAA Compliant, ANSI C78.377-2017, DLC 5.1, Mercury Free, RoHS, IESNA LM-79 and LM-80, UL Listed, PROP65 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 0.58, 0.34, 0.29, 0.25, 0.81, 0.47, 0.41, 0.35, 1.10, 0.64, 0.55, 0.48, 1.40, 0.81, 0.70, 0.61 A |
| Average Life | 100000 hr |
| Ballast Type | 0 to 10 V Dimmable |
| Catalog ID | RABFXLEDST |
| Color Rendering Index (CRI) | 81 CRI |
| Color Temperature | 4000 K |
| Dimensions | 11.13 in H x 14.63 in W x 6.31 in D |
| Enclosure Type | NEMA 6H x 6V/IP66 |
| Lamp Type | LED |
| Lamp Wattage | 69, 97, 132, 168 W |
| Lens Type | Tempered Glass |
| Light Color | Neutral |
| Light Output | 131 to 152.1 Lumens/W |
| Lumens | 10206 to 22010 Lumens |
| Mounting Type | Trunnion |
| Housing Material | Die-cast Aluminum |
| Includes | Dimming control wiring for 0-10V dimming systems |
