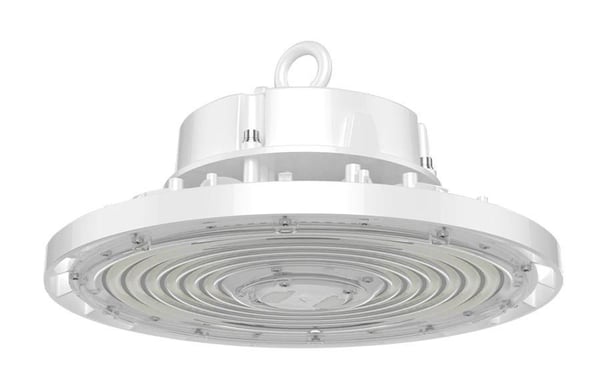

RAB H17XL H17 Field-Adjustable High Bay, LED Lamp, 120, 208, 240, 277 V
RAB H17XL H17 Field-Adjustable High Bay, LED Lamp, 120, 208, 240, 277 V
SKU: RABH17XL
Manufacturer Part Number: H17XL
UPC: 192552022033
Specification
| Series | H17 |
|---|---|
| Type | Field-Adjustable |
| Voltage Rating | 120, 208, 240, 277 V |
| Application | 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Standard & Approvals | BAA Compliant, ANSI C78.377-2017, DLC 5.1, Mercury Free, RoHS, IESNA LM-79 and LM-80, UL Listed, PROP65 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 1.25, 0.72, 0.63, 0.54, 1.69, 0.98, 0.85, 0.73, 2.01, 1.16, 1.00, 0.87 A |
| Average Life | 100000 hr |
| Ballast Type | 0 to 10 V Dimmable |
| Catalog ID | RABH17XL |
| Color Rendering Index (CRI) | 82 to 86 CRI |
| Color Temperature | 3000,4000,5000 K |
| Dimensions | 6.88 in H x 12.56 in Dia |
| Enclosure Type | IP65 |
| Housing Material | Precision Die-Cast Aluminum |
| Lamp Type | LED |
| Lamp Wattage | 150, 200, 240 W |
| Lens Type | Polycarbonate |
| Light Output | 135.6 to 168.4 Lumens/W |
| Lumens | 22696 to 37253 Lumens |
| Mounting Type | Hook/Pendant |
| Includes | Driver includes wiring for 0-10V dimming systems |
