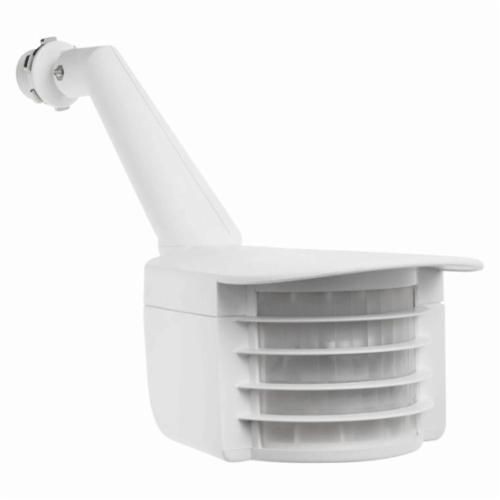

RAB LS300W Non-Fixture Luminator Sensor, 120 VAC, Infrared LED Sensor, 50 ft Out x 70 ft Wide Coverage, 110 deg Viewing, Threaded Mount
RAB LS300W Non-Fixture Luminator Sensor, 120 VAC, Infrared LED Sensor, 50 ft Out x 70 ft Wide Coverage, 110 deg Viewing, Threaded Mount
SKU: RABLS300W
Manufacturer Part Number: LS300W
UPC: 019813730028
Documents
Features
- 300 W switching capacity
- Manual override
- Fully adjustable positioning
- 110 deg double look down lens
- Tough, vandal resistant lens and grill
- LS300 fits 1/2 in standard threaded cover plates
- Adjustable from 100 to 50 percent detector sensitivity
- 5 minutes of test time when power is turned on, Rests to auto mode without further adjustment auto test logic
- Made of tough, corrosion resistant polycarbonate, accepts PAR-38 lamps, medium base, 150 W maximum lamps not included
- Withstands up to 3000 volts
- 300 W incandescent at 120 VAC, 2.5 A switching capacity
- Two flip logic prevents activation by momentary power outages, override resets to auto after 6 hours or at dawn, no extra wiring needed
- Deactivates lights during daylight, fully adjustable for 24 hour operation or custom applications
- Made of tough, corrosion resistant polycarbonate sensor housing
Specification
| Lamp Type | Incandescent |
|---|---|
| Material | Polycarbonate |
| Mounting Type | 1/2 in Threaded |
| Power Rating | 1 W |
| Response Frequency | 60 Hz |
| Sensor Type | Infrared |
| Time Delay | 8 sec to 10 min |
| Viewing Angle | 110 deg |
| Voltage Rating | 120 VAC |
| Application | For outdoor and wet locations |
| Standard & Approvals | UL Listed |
| Amperage Rating | 2.5 A |
| Dimensions | 5 in H x 3 in W |
| Color | White |
| Coverage | 50 ft Out x 70 ft Wide |
