RAB Luminator® LU300W Floodlight Kit, (2) PAR38 Incandescent Lamp, 300 W Fixture, 120 VAC, Polycarbonate Housing
RAB Luminator® LU300W Floodlight Kit, (2) PAR38 Incandescent Lamp, 300 W Fixture, 120 VAC, Polycarbonate Housing
SKU: RABLU300W
Manufacturer Part Number: LU300W
UPC: 019813750118
Documents
Features
- 300 W incandescent at 120 V, 2.5 A switching capacity
- Manual override
- Fully adjustable positioning
- 110 deg double look down lens
- Tough, vandal-resistant lens and grill
- LS300 fits 1/2 in standard threaded cover plates
- Two flip logic prevents activation by momentary power outages
- Override resets to auto after 6 hours or at dawn
- No extra wiring needed
- Withstands up to 3000 V
- Deactivates lights during daylight
- Fully adjustable for 24 hour operation or custom applications
- 60 Hz frequency
- White finish
- 5 minutes of test time when power is turned on, Rests to auto mode without further adjustment
- Made of tough, corrosion-resistant polycarbonate sensor housing
- Lamps not included

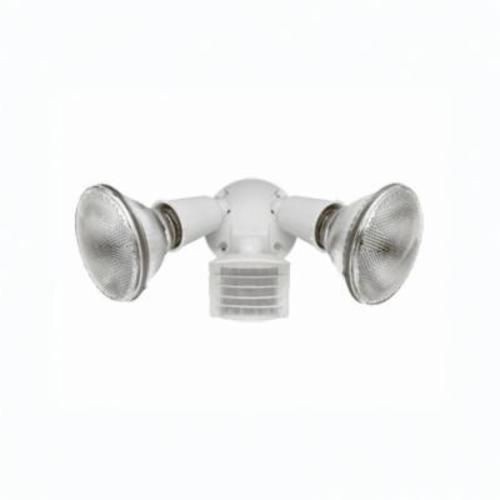

- Luminator sensor with two weatherproof, corrosion-proof floodlights and round mounting plate
- Pre-wired for easy installation
- Both floods and sensor have universal ball swivels for easy tool-less adjustment
Specification
| Housing Material | Polycarbonate |
|---|---|
| Lamp Base | Medium |
| Lamp Type | PAR38 |
| Lamp Wattage | 150 W |
| Lens Type | Vandal and Corrosion Resistant/Double Look Down |
| Mounting Type | Wall |
| Number of Lamps | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 2.5 A |
| Fixture Wattage | 300 W |
| Sensing Angle | 110 deg |
| Time Delay | 8 sec to 10 min |
| Voltage Rating | 120 VAC |
| Standard & Approvals | UL Listed |
| Application | For Wet Locations |
| Dimensions | 15-1/2 in L x 4-1/2 in W |
| Catalog ID | RABLU300W |
