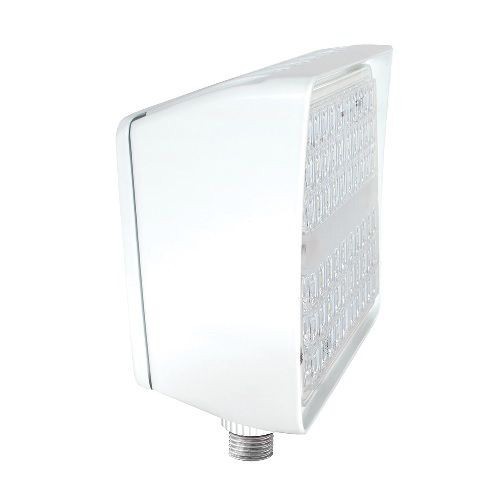

RAB PIP20W/D10 Standard Floodlight, LED Lamp, 20 W Fixture, 120 to 277 VAC, White Housing
RAB PIP20W/D10 Standard Floodlight, LED Lamp, 20 W Fixture, 120 to 277 VAC, White Housing
SKU: RABPIP20W/D10
Manufacturer Part Number: PIP20W/D10
UPC: 019813494777
Features
- 0.16 A at 120 VAC, 0.1 A at 208 VAC, 0.09 A at 240 VAC, 0.08 A at 277 VAC
- Without photoce
Specification
| Housing Finish | White |
|---|---|
| Housing Material | Die Cast Aluminum |
| Lamp Type | LED |
| Lamp Wattage | 20 W |
| Lens Type | Frosted Acrylic |
| Light Color | Cool White |
| Lumens | 2728 Lumens |
| Mounting Type | Arm |
| Series | PIP |
| Voltage Rating | 120 to 277 VAC |
| Standard & Approvals | DLC, UL Listed for Wet Locations |
| Amperage Rating | 0.16/0.1/0.09/0.08 A |
| Dimensions | 7-5/16 in H x 3-1/4 in W x 6-1/2 in D |
| Average Life | 60000 |
| Ballast Type | Class 2 Constant Current |
| Color Rendering Index (CRI) | 77 |
| Color Temperature | 5000 |
| Enclosure Type | NEMA 7H x 6V/IP66 |
| Fixture Wattage | 20 W |
