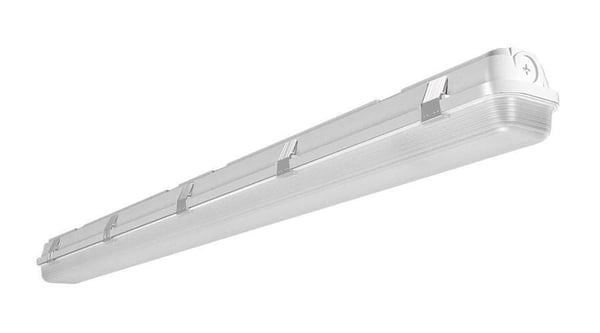

RAB SEAL4 SEAL Field-Adjustable LED Vapor Tight, LED Lamp, 120, 208, 240, 277 V
RAB SEAL4 SEAL Field-Adjustable LED Vapor Tight, LED Lamp, 120, 208, 240, 277 V
SKU: RABSEAL4
Manufacturer Part Number: SEAL4
UPC: 192552023887
Features
- 0-10V dimming standard
Specification
| Series | SEAL |
|---|---|
| Type | Field-Adjustable |
| Voltage Rating | 120, 208, 240, 277 V |
| Standard & Approvals | BAA Compliant, ANSI C78.377-2017, DLC 5.1, FCC, Mercury Free, RoHS, IESNA LM-79 and LM-80, NSF Certified, UL 94, UL Listed |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 100000 hr |
| Ballast Type | 0 to 10 V Dimmable |
| Color Rendering Index (CRI) | 80 CRI |
| Color Temperature | 3500 K |
| Housing Material | Polycarbonate |
| Lamp Type | LED |
| Includes | Dimming control wiring for 0-10V dimming systems |
| Lumens | 4080 to 6800 Lumens |
| Light Output | 130 to 142 Lumens/W |
| Dimensions | 49.6 in H x 4.5 in W x 3.7 in D |
| Catalog ID | RABSEAL4 |
| Amperage Rating | 0.46, 0.26, 0.23, 0.20 A |
| Mounting Type | V-Hook |
| Lens Type | Diffused Polycarbonate |
| Enclosure Type | NEMA 4X/IP66 |
| Light Color | Warm Neutral |
| Lamp Wattage | 30, 40, 50 W |
