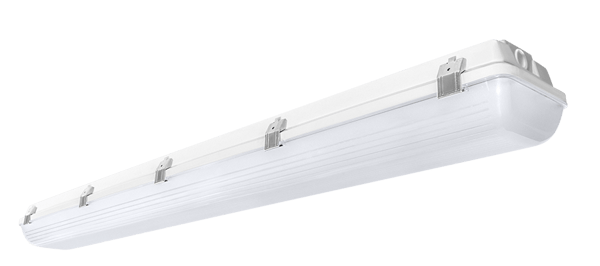

RAB SEAL4-50/D10 Washdown Fixture With 0 to 10 VDC Dimming Driver,) LED Lamp, 49 W Fixture, 120/208/240/277 VAC, White Housing
RAB SEAL4-50/D10 Washdown Fixture With 0 to 10 VDC Dimming Driver,) LED Lamp, 49 W Fixture, 120/208/240/277 VAC, White Housing
SKU: RABSEAL4-50/D10
Manufacturer Part Number: SEAL4-50/D10
UPC: 019813606248
Features
- Economical linear washdown solution
- Impact resistant polycarbonate housing
- Diffuse polycarbonate lens for protection and minimal glare
- Quick mount solutions surface and suspended
- 0.44 A at 120 VAC, 0.26 A at 208 VAC, 0.23 A at 240 VAC, 0.19 A at 277 VAC
Specification
| Housing Finish | White |
|---|---|
| Housing Material | Polycarbonate |
| Lamp Type | LED |
| Lamp Wattage | 50 W |
| Lens Type | Polycarbonate Diffuser |
| Light Color | Cool White |
| Light Output | 119 Lumens/W |
| Lumens | 5849 Lumens |
| Mounting Type | Surface |
| Series | SEAL |
| Voltage Rating | 120/208/240/277 VAC |
| Application | Indoor Applications |
| Standard & Approvals | UL Listed for Wet Locations, IESNA LM-79/LM-80, ANSI C78.377-2017, DLC Certified |
| Dimensions | 4 ft L x 6.35 in W x 4.28 in H |
| Average Life | 50000 hr |
| Ballast Type | Constant Current |
| Color Rendering Index (CRI) | 82 |
| Color Temperature | 5000 K |
| Enclosure Type | IP65 |
| Fixture Wattage | 49 W |
| Amperage Rating | 0.19/0.23/0.26/0.44 A |
